Removing Pilot Line Connector
WARNING: This page is about a different variant/trim than selected.
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.
→ Required qualification High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.
→ Observe general warning notices for working on the high-voltage system.
→ > 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Unclip pilot line connector.

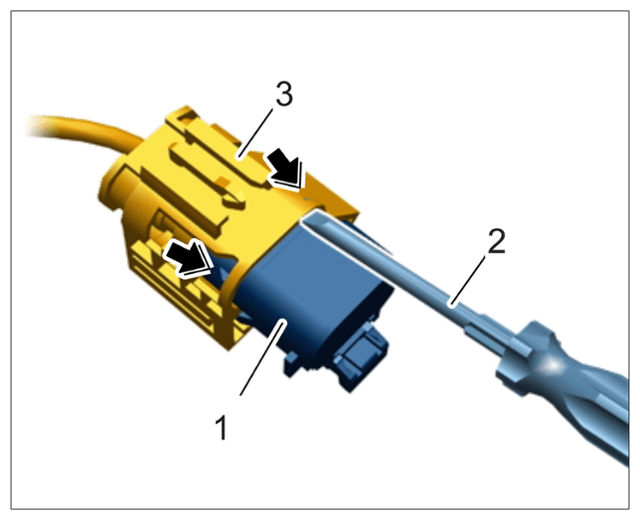

- Release cover -1-
using a suitable tool -2-
and remove it from the housing -3-
(-arrows-
).
Cover on pilot line connector
- Loosen fabric adhesive tape on electric line at the end of the connector and cut it off.

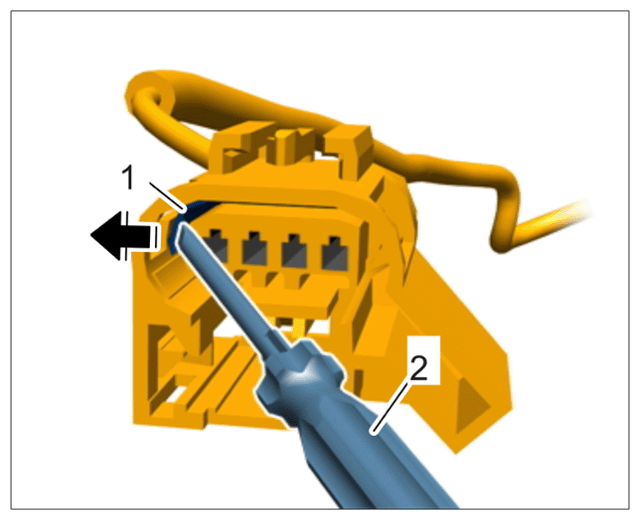

- Release secondary lock -1-
using a suitable tool -2-
(-arrow-
).
Secondary lock on pilot line connector
Information
Caution! Risk of damage to locking lugs.

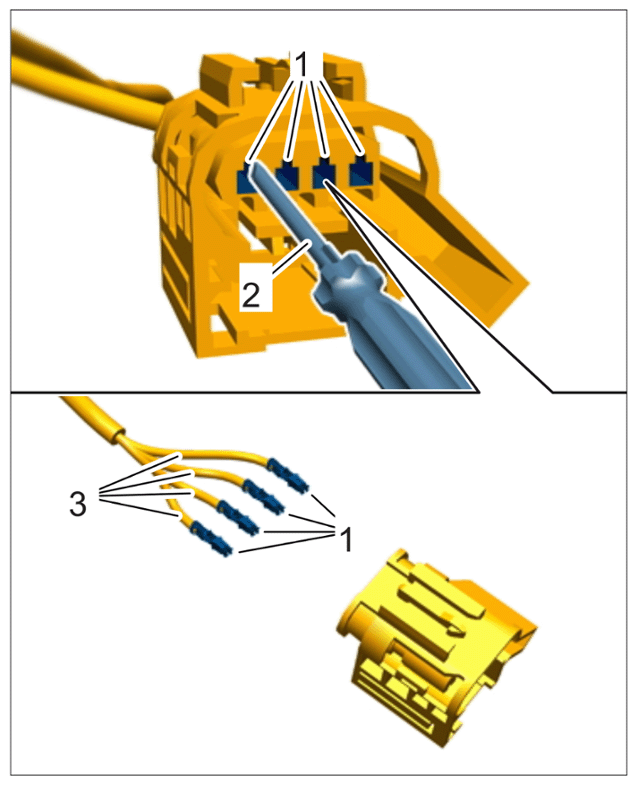

- Release pins using press-out tool -2-
from > VAS 1978/35-20 - Release Tool Set
and pull them out carefully at the electric line -3-
.
Pilot line connector pins

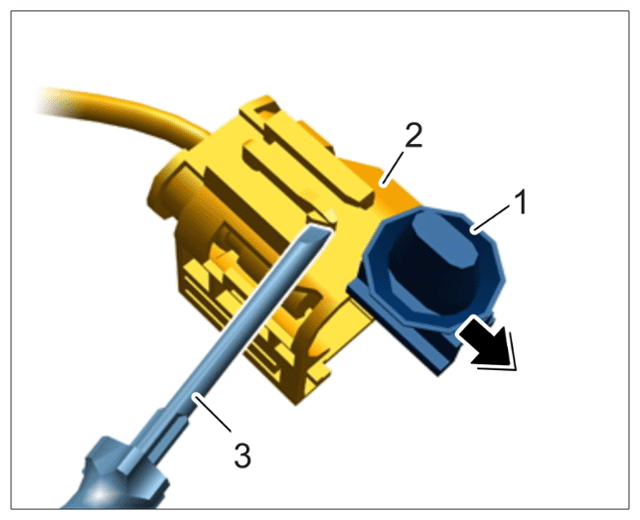

- Release clip -1-
from the old pilot line connector -2-
using a suitable tool -3-
and pull it off -arrow-
.
Clip on pilot line connector
