Technical Values: Overview
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance | Tolerance |
|---|---|---|---|---|---|

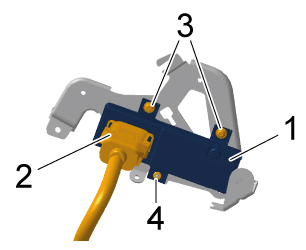

| Fastening nut securing HV battery control unit | Item 4 | Tightening torque | 2.5 Nm (1.75 ftlb.) | ||
|
HV battery control unit |
|||||
| Fastening screws for HV battery control unit | Item 3 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
HV battery control unit |
|||||

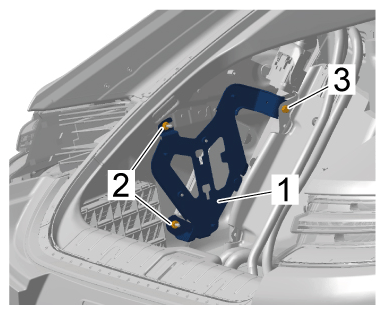

| Fastening nuts for HV battery control unit holder | Item 2 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
HV battery centre, unit holder |
|||||
| Fastening screw for HV battery control unit holder | Item 3 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
HV battery control unit holder |
