Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Screws for heat shield for temperature sensor		Tightening torque	8 Nm (5.9 ftlb.)

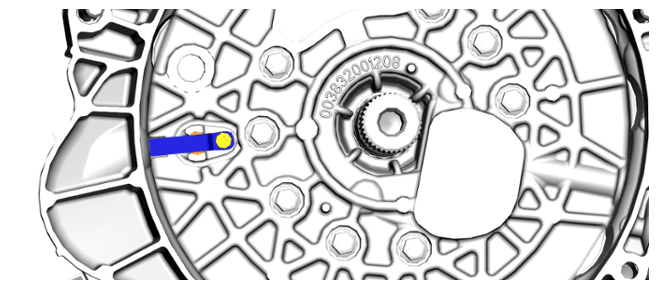

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Screw for outer holder for screw temperature sensor	Screw must be replaced	Tightening torque	6 Nm (4.4 ftlb.)

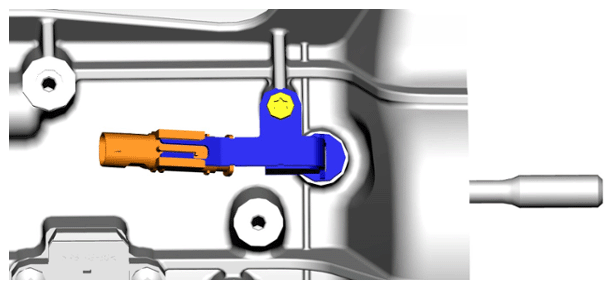

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for outer temperature sensor
Screw for inner holder for screw temperature sensor	Screw must be replaced	Tightening torque	6 Nm (4.4 ftlb.)

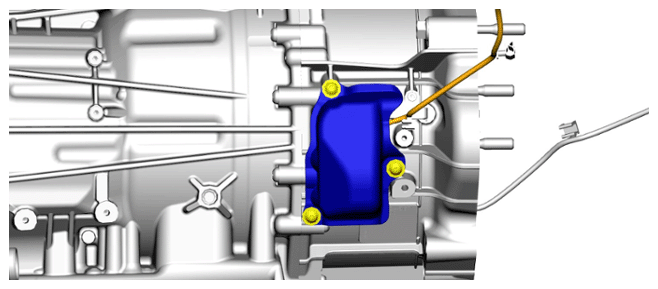

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner temperature sensor holder
