Subsequent Work
WARNING: This page is about a different variant/trim than selected.
WARNING:
Incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.
→ Observe general warning notices for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

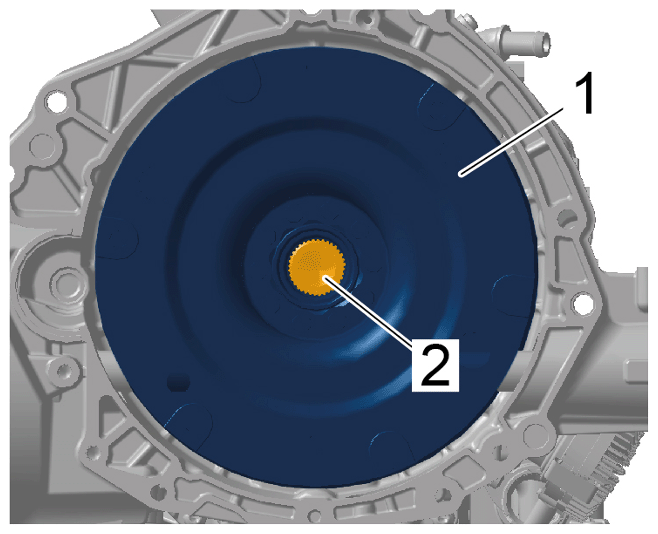

- Fit torsional vibration damper -1-
on shaft of electric motor -2-
.
Observe marking!
Torsional vibration damper
- Install left drive shaft.
- Mount transmission.
> WM, 373427 REMOVING AND MOUNTING DOUBLE-CLUTCH TRANSMISSION (V6 HYBRID)
or
> Refer to the appropriate service Information for Removing and mounting double clutch transmission (V8 Hybrid) - section on "Installing"
