Removing Temperature Sensor

Information

Micro-self-locking screws

Fit new screws following removal.

Only for V6 Hybrid and V8 S Hybrid:

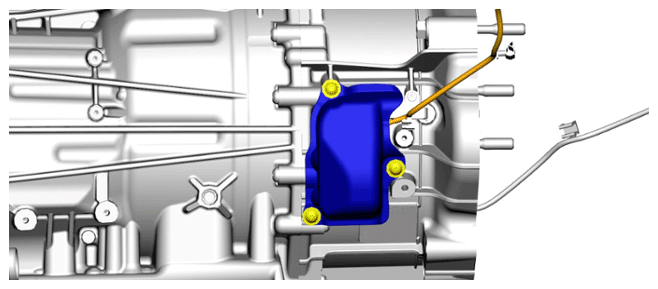

1. Unscrew screws on heat shield of temperature sensor and remove heat shield.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat shield

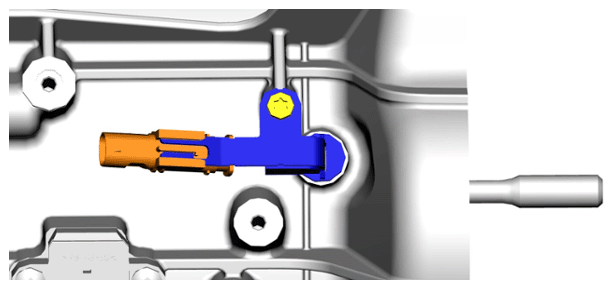

2. Release and disconnect electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

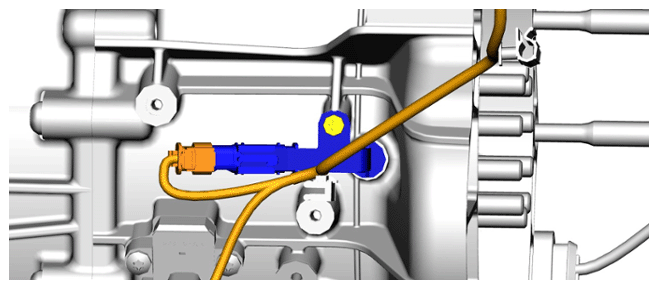

3. Unscrew outer temperature sensor holder and remove holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for outer temperature sensor

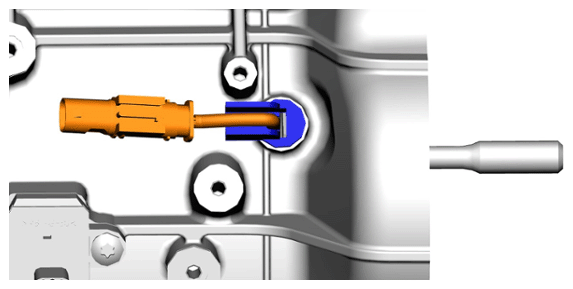

4. Carefully push the temperature sensor guide out of the transmission using a suitable tool.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guide for temperature sensor

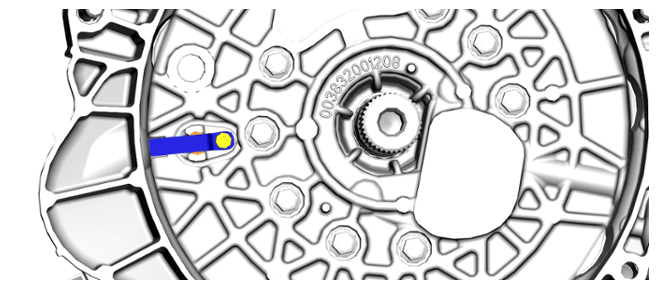

5. Unscrew screw on inner temperature sensor holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner temperature sensor holder

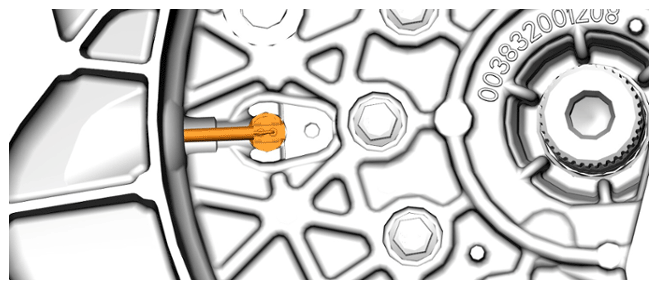

6. Remove the temperature sensor from the transmission and drive it through the side opening on the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Temperature sensor
