Preliminary Work
WARNING: This page is about a different variant/trim than selected.
WARNING:
incorrect handling of high-voltage components
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.
→ Observe general warning notices for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Remove transmission.
> 373427 Removing and mounting double clutch transmission (V6 Hybrid) - section on "REMOVING "
or
> 373427 Removing and mounting double clutch transmission (V8 Hybrid) - section on "REMOVING "
- Remove left drive shaft.
- Remove torsional vibration damper -1-
.

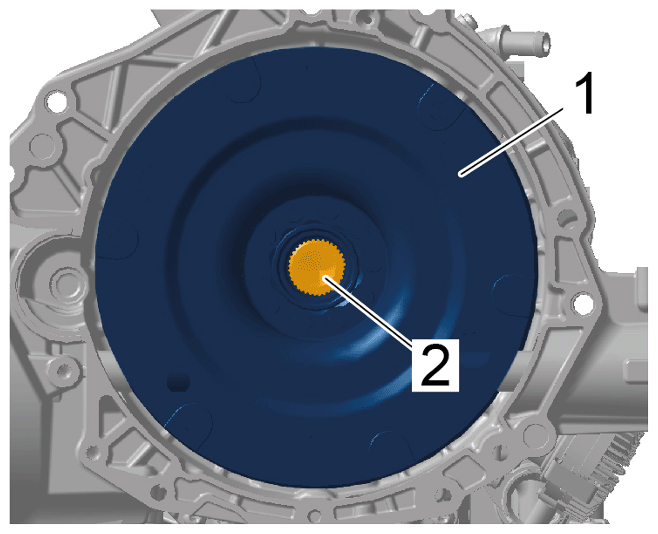

Torsional vibration damper
- 3.1 Mark installation position of torsional vibration damper -1- with respect to shaft of electric motor -2- .
- 3.2 Remove torsional vibration damper -1- from shaft of electric motor -2-
