Installing Rotor Position Sensor

WARNING: This page is about a different variant/trim than selected.

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.

→ Observe general warning notices for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Replace gasket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seal

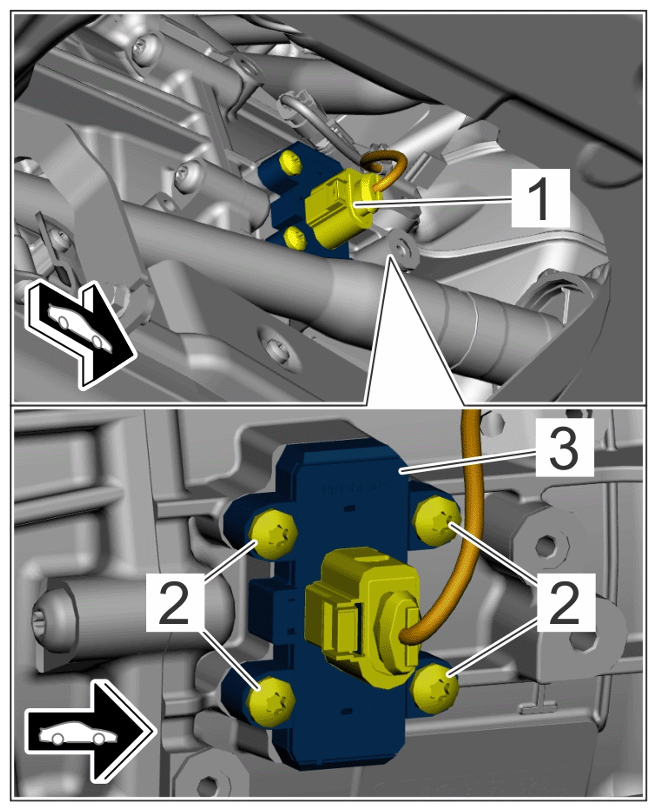

Fit rotor position sensor -3- and tighten new screws -2- evenly with > Tightening torque 7 Nm (5.2 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rotor position sensor
1. 2.1 Connect and lock electric plug connection for rotor position sensor -1- .
  The electric plug connection must engage perceptibly.

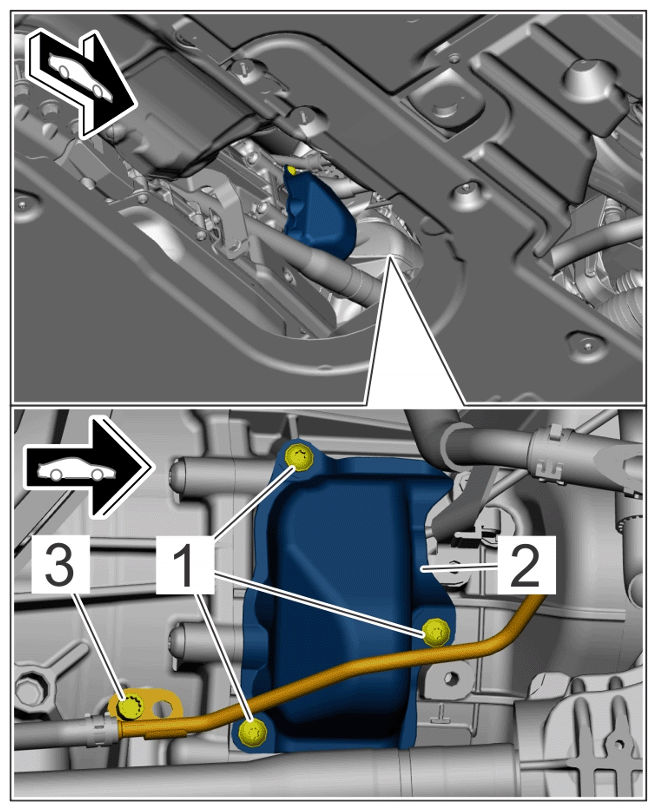

Only V6 Hybrid: Position heat shield -2- and fit and tighten screws -1- .
> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Only V6 Hybrid heat shield for rotor position sensor
1. 3.1 For vehicles with particle filter: Fit and tighten screw -3- .
