Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Screws on distance measuring sensor control unit Item 1 Tightening torque 2.5 Nm (1.8 ftlb.) +/- 10 %

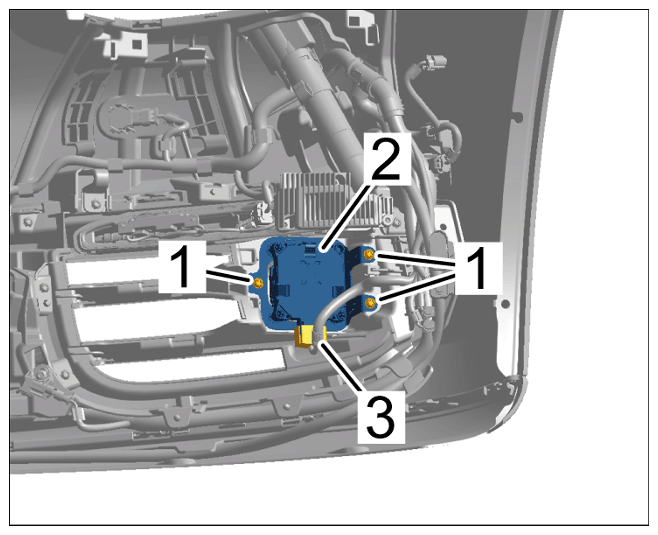

G15878589Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on distance measuring sensor control unit
