Install E-Box

WARNING: This page is about a different variant/trim than selected.
WARNING: Incorrect handling of high-voltage components
  • Electric shock
  • Short circuit
  • Fire
  • Explosion

    → Only appropriately trained and authorized persons may work on high-voltage vehicles and components.

    → Required qualification: High voltage technician or high voltage expert.

    → Observe national requirements and legislation for this work.

    → Always use insulated tools, such as an > VAS 6883 - insulated tool set  when working on these parts.

    → Observe general warning notices for working on the high-voltage system.

    > WM, 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

  1. Install E-box.
    1. 1.1 Replace seals.
    2. 1.2 Carefully position E-box.
    3. 1.3 Screw in fastening screw -4-  .

      Replace micro-self-locking screw.

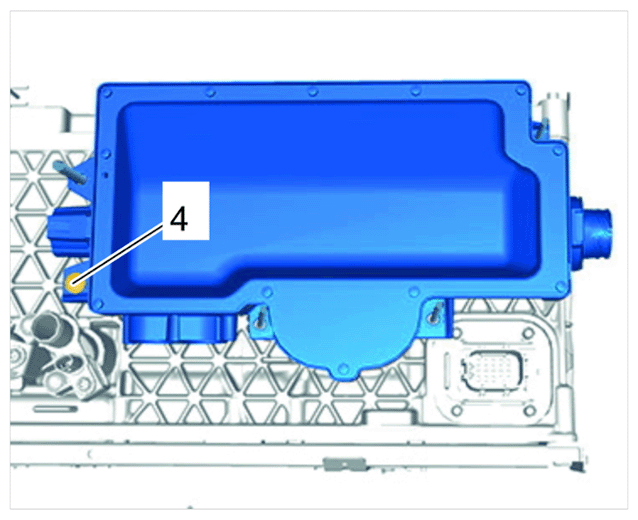

      G15878393Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosening E-box

      Information

      Immediately after removing a centring pin, screw in and fit the fastening screw.

    4. 1.4 > 9924 - Centring pins-3-  must now be unscrewed.
      G15878394Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Centring pins on E-box

    5. 1.5 Screw in -1-  fastening screws.

      Replace micro-self-locking screws.

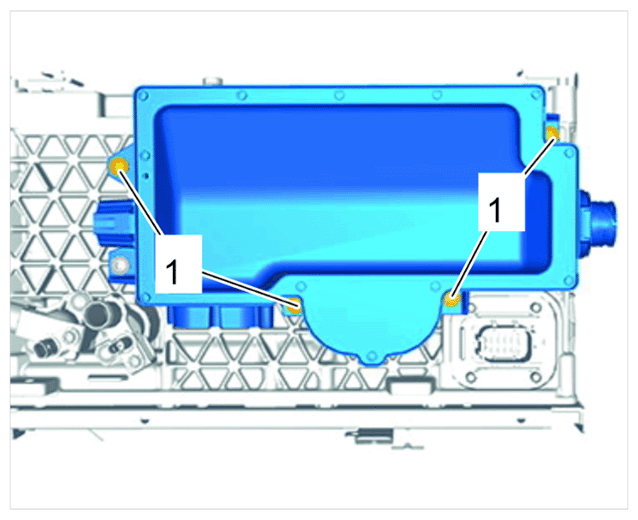

      G15878395Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on E-box

    6. 1.6 Fit fastening screws securing E-box to high-voltage battery and tighten to > Tightening torque 8 Nm (6 ftlb.)  .
  2. Perform leak test on the battery housing using > 9925 - leak-tightness test set  , > T40349 - seal plug  , > T40354 - seal plug  and > VAS 6213 - Hand vacuum pump  .

    > 270801 PERFORMING LEAK TEST ON HIGH-VOLTAGE BATTERY

  3. Fit pressure accumulator and load distributor plate.
    1. 3.1 Position load distributor plate together with lower bar on the high-voltage battery.
    2. 3.2 Position retaining frame together with the pressure accumulator on the high-voltage battery.
    3. 3.3 Fit fastening screws -6-  and tighten to > Tightening torque 8 Nm (6 ftlb.)  .
      G15878396Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on retaining frame, bottom

    4. 3.4 Fit fastening screws -5-  and tighten to > Tightening torque 8 Nm (6 ftlb.)  .

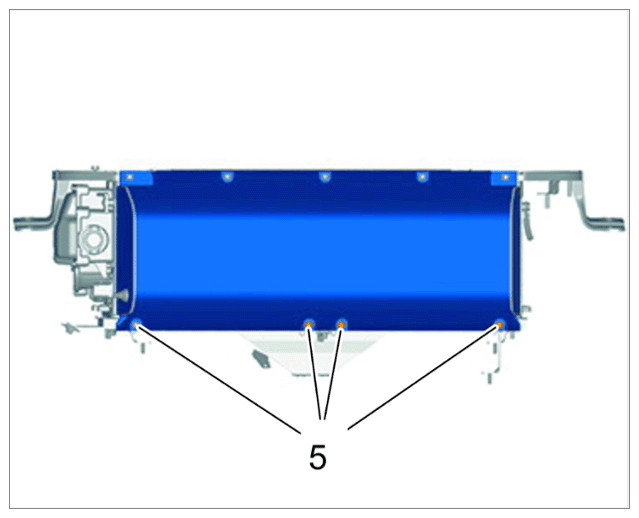

      G15878397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on pressure accumulator, bottom

  4. Secure retaining frame at the top.
    1. 4.1 Fit fastening screws -4-  and tighten to > Tightening torque 8 Nm (6 ftlb.)  .
      G15878398Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Fastening screws on retaining frame

    2. 4.2 Screw in fastening screws -A to D and 1 to 12-  by a couple of turns.
    3. 4.3 Fit fastening screws -A, B, C and D-  in this sequence and tighten to > Tightening torque 28 Nm (21 ftlb.) +/- 2 Nm (1.5 ftlb.)  .
    4. 4.4 Fit fastening screws (M8 x 30) -1, 2, 3 and 4-  in this sequence and tighten to > Tightening torque 20 Nm (15 ftlb.)  .
    5. 4.5 Fit fastening screws (M8 x 18) -5, 6, 7, 8, 9, 10, 11 and 12-  in this sequence and tighten to > Tightening torque 20 Nm (15 ftlb.)  .
      Fig 1: Battery Console At Top Of HV Battery Screws Tightening Sequence

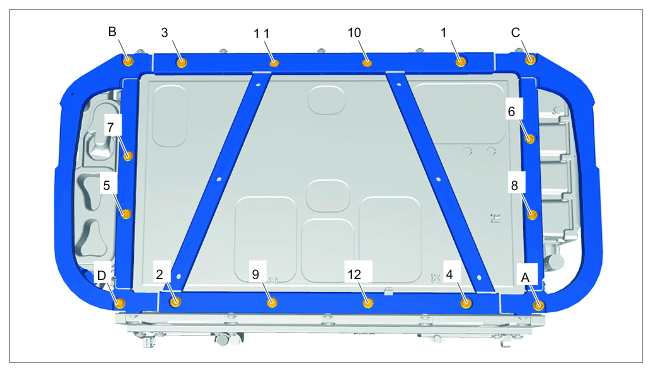

      G15878399Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tightening sequence for battery console at top of HV battery
