Spring Strut: Notes

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance
Spring strut to lower trailing arm	Item 2: Hexagon-head bolt, M12 x 1.5 x 90 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	90 Nm (67 ftlb.)

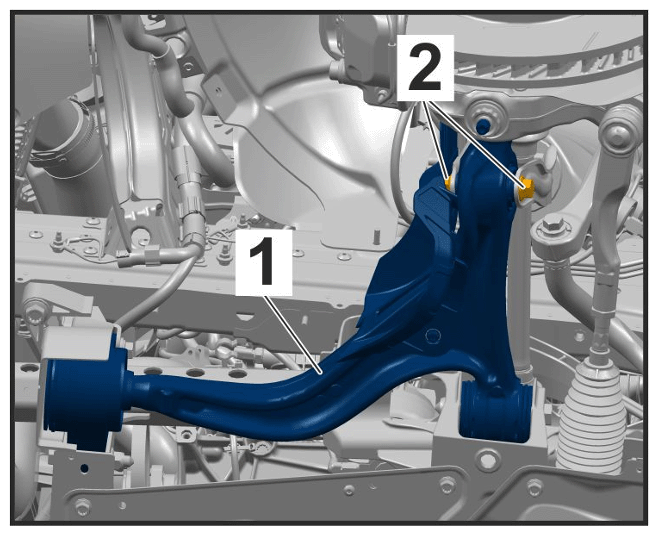

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut on lower trailing arm
Spring strut to lower trailing arm	Item 2: Hexagon-head bolt, M12 x 1.5 x 90 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut on lower trailing arm
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Initial tightening	40 Nm (30 ftlb.)

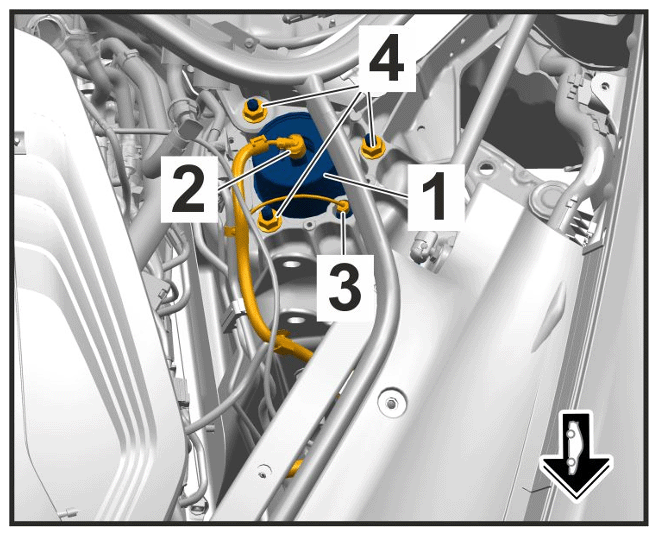

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Supporting mount to piston rod, steel springs	Hexagon nut, M14 x 1.5		Tightening torque	53 Nm (39 ftlb.)
Supporting mount to piston rod, air-spring strut	M12 x 1.5 thread	Tightening torque	55 Nm (41 ftlb.)
Pressure line to air-spring strut	Item 3: Voss threaded joint	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
