Drive Shaft

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Drive shaft to wheel hub	Item 1: Hexagon nut, M22 x 1.5	Tightening torque	460 Nm (340 ftlb.)

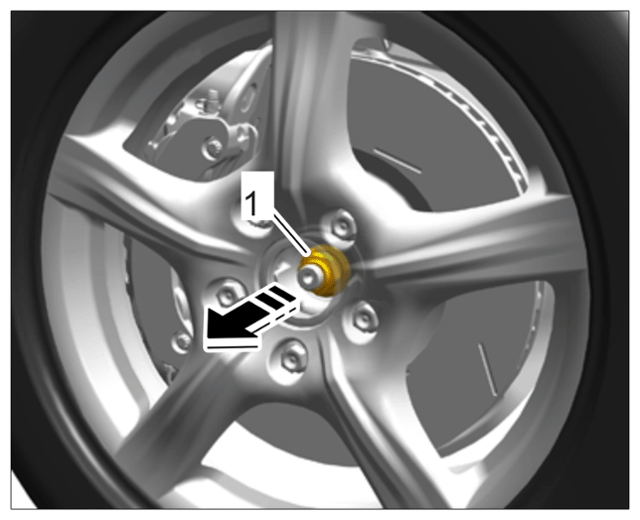

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Axle nut
Hose clamp (load group 1, on transmission side, large)	Tighten using tool V.A.G 1682A	Tightening torque	11 Nm (8 ftlb.)

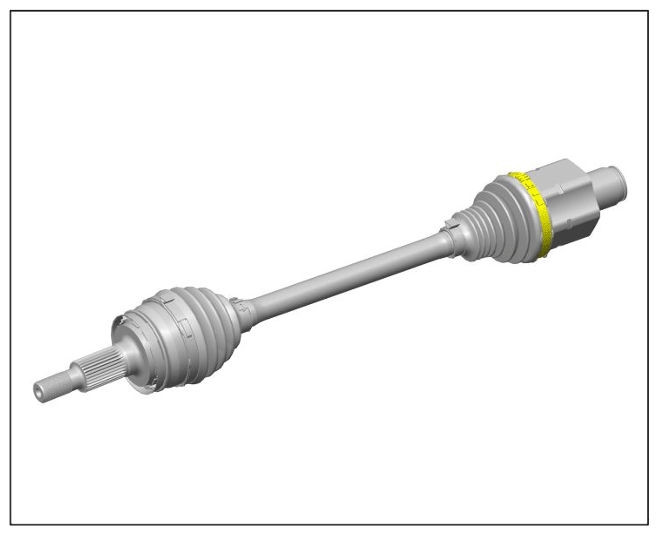

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on transmission side, small)	Tighten using tool V.A.G 1682A	Tightening torque	15.5 Nm (11.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, large)	Tighten using tool V.A.G 1682A	Tightening torque	21 Nm (16 ftlb.)

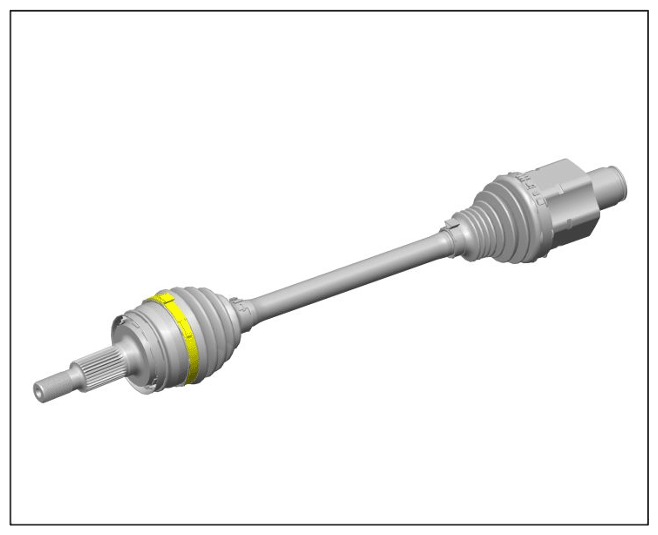

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 1, on wheel side, small)	Tighten using tool V.A.G 1682A	Tightening torque	15.5 Nm (11.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, large)	Tighten using tool V.A.G 1682A	Tightening torque	11 Nm (8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on transmission side, small)	Tighten using tool V.A.G 1682A	Tightening torque	15.5 Nm (11.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on transmission side, small) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, large)	Tighten using tool V.A.G 1682A	Tightening torque	21 Nm (16 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, large) - component can differ from illustration due to the wide range of variants
Hose clamp (load group 2, on wheel side, small)	Tighten using tool V.A.G 1682A	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hose clamp (on wheel side, small) - component can differ from illustration due to the wide range of variants
