Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Only for installing cylinder head cover on right cylinder bank:
    1. 1.1 Install tank vent valve.

      > Removing and installing tank vent valve (V6 monoturbo)

    2. 1.2 Install the high-pressure pump.

      For V6 biturbo:

      > Removing and installing high-pressure pump (V6 biturbo)

      For V6 monoturbo:

      > Removing and installing high-pressure pump

  2. Fit holder for solenoid valves -1-  .
    1. 2.1 Fit holder -1-  .
    2. 2.2 Screw on nuts on holder -3-  and tighten to > Tightening torque 9 Nm (6.5 ftlb.)  .
    3. 2.3 Insert solenoid valves -2-  in holder -1-  .

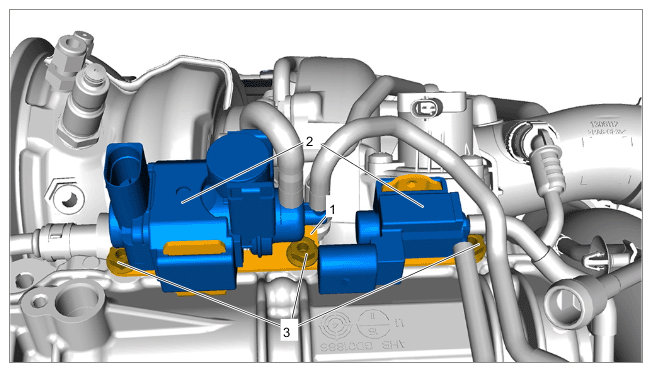

      G15822338Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Holder for solenoid valves

  3. Only for installing cylinder head cover on left cylinder bank:
    1. 3.1 Install oil mist separator.

      > Removing and installing oil mist separator (V6 Turbo)

    2. 3.2 Install brake booster vacuum pump.

      > Removing and installing brake booster vacuum pump

  4. Insert lower part of sound insulation.
  5. Fit main wire harness in engine compartment.

    > Loosening and securing main wire harness in engine compartment

  6. Install solenoid hydraulic valves for valve lift adjustment.

    > Removing and installing solenoid hydraulic valve for valve lift adjustment (V6 Turbo)

  7. Install fuel injectors.

    > Removing and installing fuel injector

  8. Fit timing chain on the camshafts.

    > Removing and installing timing chain (V6 Turbo)
