Installing ATF Pan

WARNING: This page is about a different variant/trim than selected.

Clean the sealing surface on the transmission.
Install ATF pan -1- .

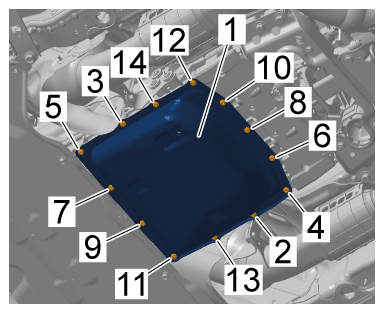

Fig 1: ATF Pan Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing ATF pan
1. 2.1 Clean sealing face on the ATF pan.
2. 2.2 Replace seal on ATF pan -1- .
3. 2.3 Fit ATF pan -1- .
4. 2.4 Screw in and tighten new screws in the specified sequence -2 to 14- .
  > Initial tightening 3 Nm (2 ftlb.)

  > Torque angle 60°
