Mounting Double-Clutch Transmission

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

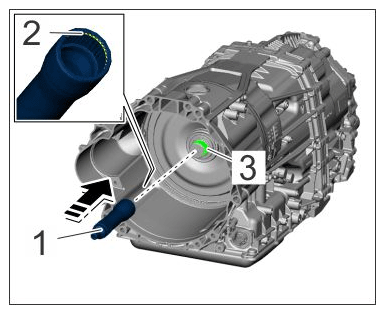

Check whether input shaft is fitted with a circlip on the double-clutch shaft splines. If not:
1. 1.1 Coat shaft splines -3- with mounting paste (see PET).
2. 1.2 Carefully fit input shaft -1- until circlip -2- engages -Arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Input shaft

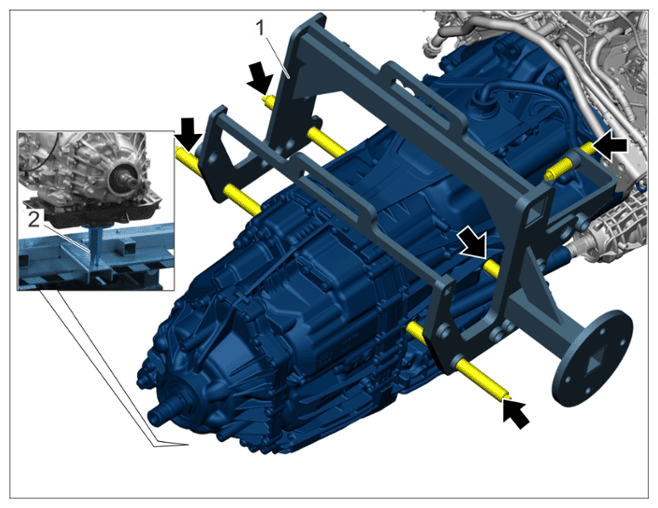

Suspend transmission using > VAS 6100 - workshop crane and > 9932 - transmission mount-1- and position it on the engine.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Workshop crane with lifting tackle 9932

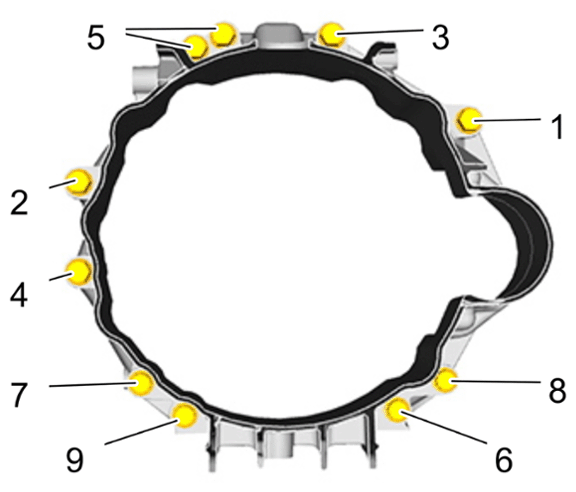

Fit transmission on engine and screw in and tighten new screws. Observe specified tightening sequence.
Screws -1 to 5- > Initial tightening 20 Nm (15 ftlb.) + > Torque angle 60°

Screws -6 to 9- > Initial tightening 15 Nm (11 ftlb.) + > Torque angle 105°

Fig 1: Transmission Flange Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for transmission flange

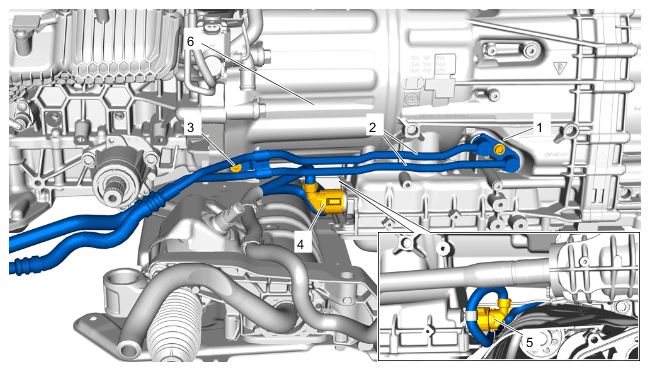

Fit ATF line -2- and connect cable plugs -4 and 5- .
1. 4.1 Remove sealing plugs.
2. 4.2 Guide ATF lines -2- into transmission -6- and fit and tighten screw -1- .
  > Tightening torque 20 Nm (15 ftlb.)
3. 4.3 Fit and tighten screw -3- .
  > Tightening torque 8 Nm (6 ftlb.)
4. 4.4 Connect and secure cable plugs -4 and 5- on transmission -6- on both sides.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF line and transmission plugs

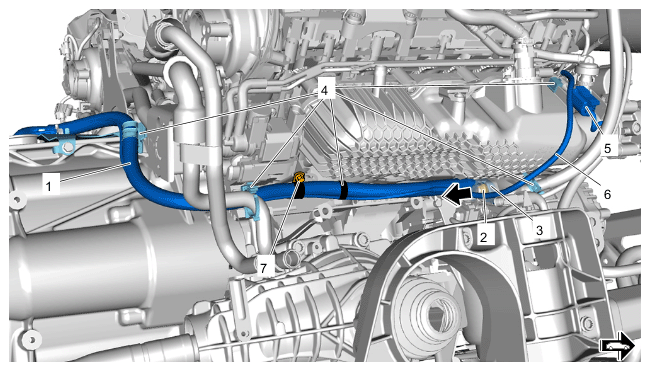

Fit B+ line -1- and terminal 50 line -6- .
1. 5.1 Route B+ line -1- with terminal 50 line -6- and clip it in at fastening points -4- .
2. 5.2 Screw on B+ line -1- at the generator.
  1. 5.2.1 Fit and tighten nuts -2- .
    > Tightening torque 20 Nm (15 ftlb.)
  2. 5.2.2 Fit cover -3- .
3. 5.3 Connect cable plug for terminal 50 -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B+ line

For all-wheel drive vehicles:

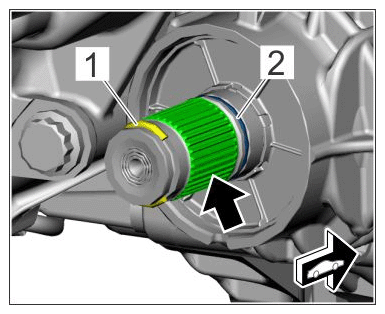

6.1 Replace circlip -1- and O-ring -2- on input flange on all-wheel final drive.

6.1.1 Clean input flange -Arrow- on all-wheel final drive and connecting shaft at the splines and coat lightly with new mounting paste (see PET).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Circlip and O-ring on all-wheel flange

6.2 Install connecting shaft -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

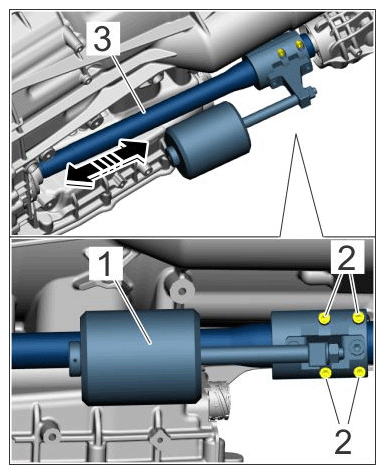

Using impact puller 9799

6.2.1 Fit connecting shaft -3- on the all-wheel final drive and install using > 9799 - impact puller-1-Arrow- .

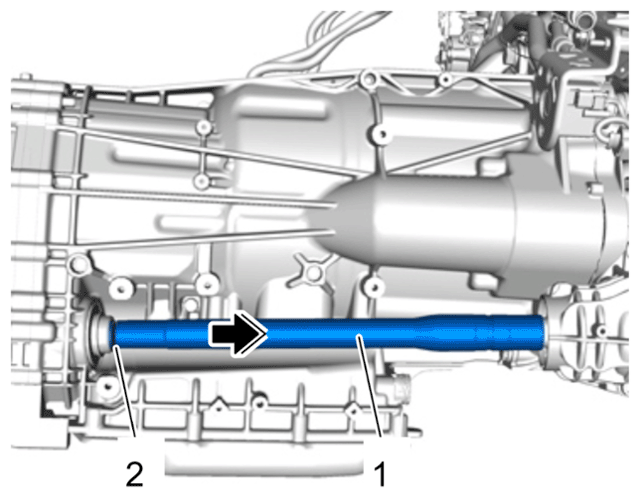

6.3 Check installation position of connecting shaft -1- . The connecting shaft is fitted correctly if groove -2- is visible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Groove in connecting shaft

6.4 Remove > 9799 - impact puller from the connecting shaft.
