Removing Transmission Control Unit (PDK)

WARNING: This page is about a different variant/trim than selected.
NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Remove the ignition key and switch off load before disconnecting or removing load.

  1. Release locking lugs -2-  .
  2. Remove transmission control unit (PDK) -1-  and set it down in the footwell.
  3. Release and disconnect electric plug connection -3-  .

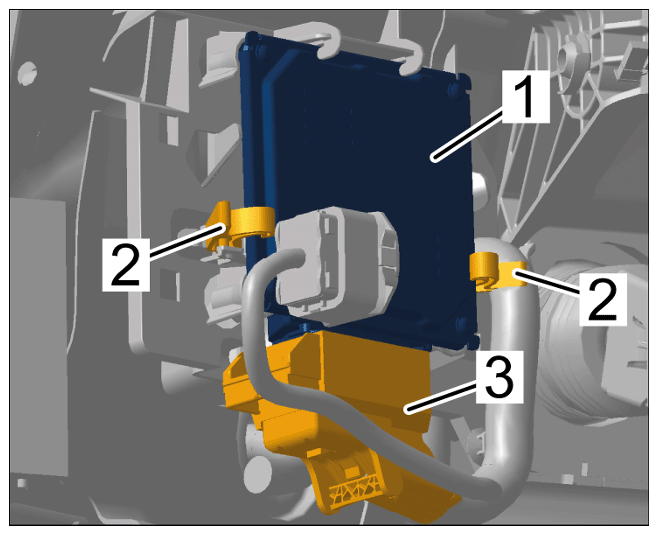

G15888357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing transmission control unit (PDK)
