Removing Support
WARNING: This page is about a different variant/trim than selected.

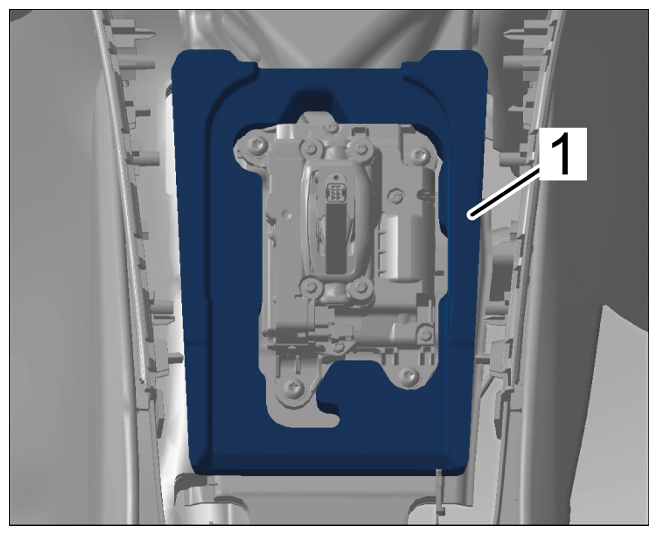

- Remove insulating material -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing insulating material

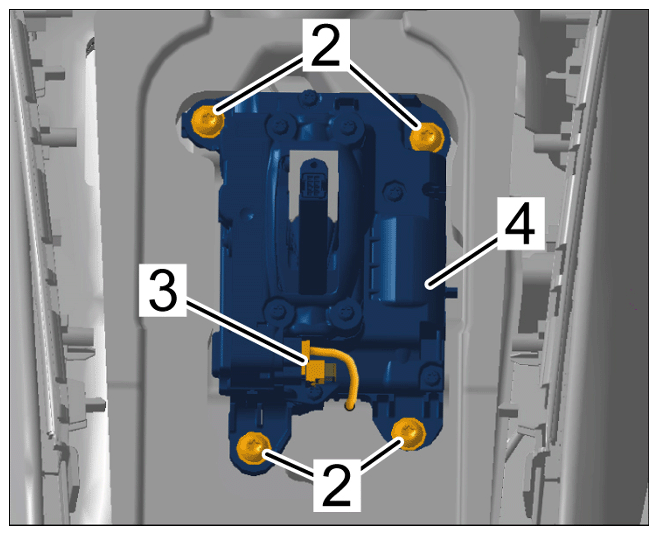

- Remove selector support -4-
.
- 2.1 Unscrew and remove screws -2-
.
- 2.2 Release and unplug electric plug connection -3-
.
- 2.3 Remove selector support -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing support
