Topping Up ATF

WARNING: This page is about a different variant/trim than selected.
  1. Fill in ATF.
    1. 1.1 Screw > VAS 6262/2 - adapter for filling ATF oil  hand-tight into the lifting tube -2-  .
    2. 1.2 Connect > VAS 6262A - adapter for oil filling  .
    3. 1.3 Shake ATF container (1 liter) well and screw it onto > VAS 6262A - adapter for oil filling  .
    4. 1.4 Fill in ATF until you see a constant discharge of oil at -3-  .
    5. 1.5 Screw in and tighten oil inspection plug -3-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

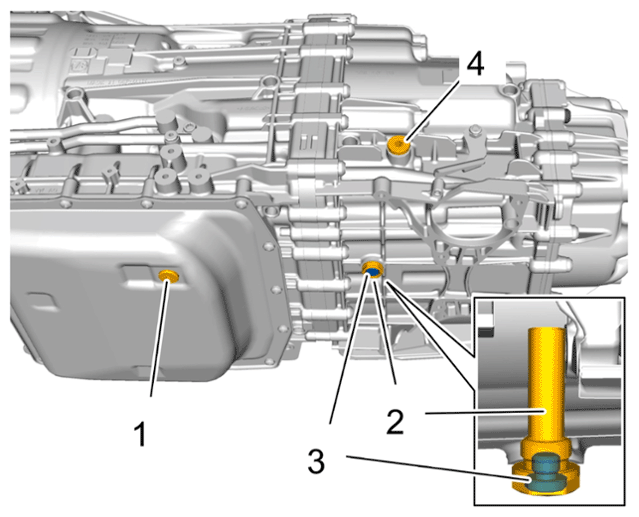

    G15888346Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Overview of oil filler screw and drain plug

  2. Install front underbody cover.

    > WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY

  3. Lower the vehicle.
