Removing (Rear) Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

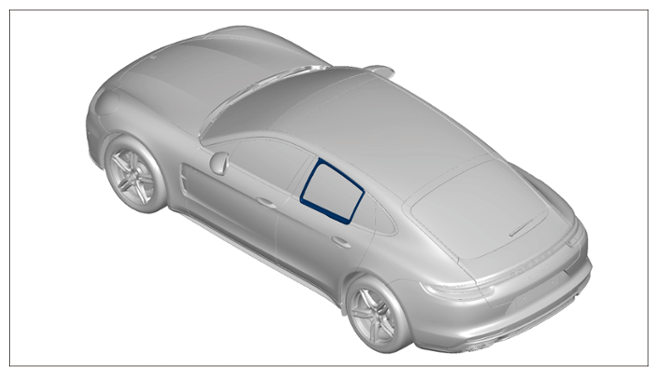

Installation position of (rear) seal

1. Pull off (rear) seal -1-  on corner window pane. -arrow A-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing seal (shown on front door)

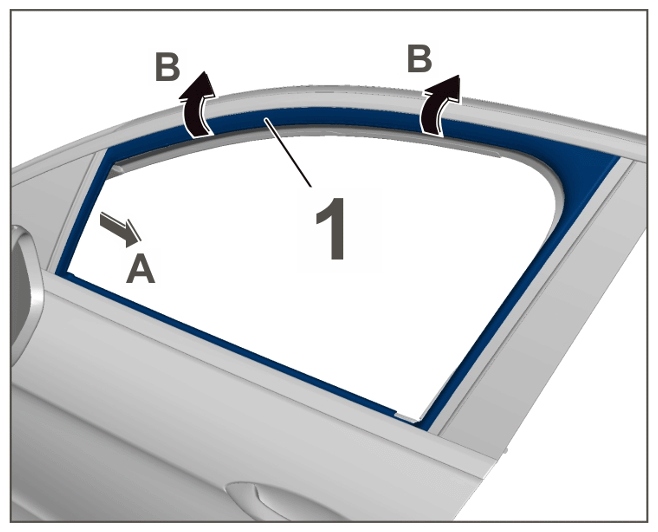

2. Unclip (rear) seal -1-  in an upward direction. -arrows B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing seal (shown on front door)

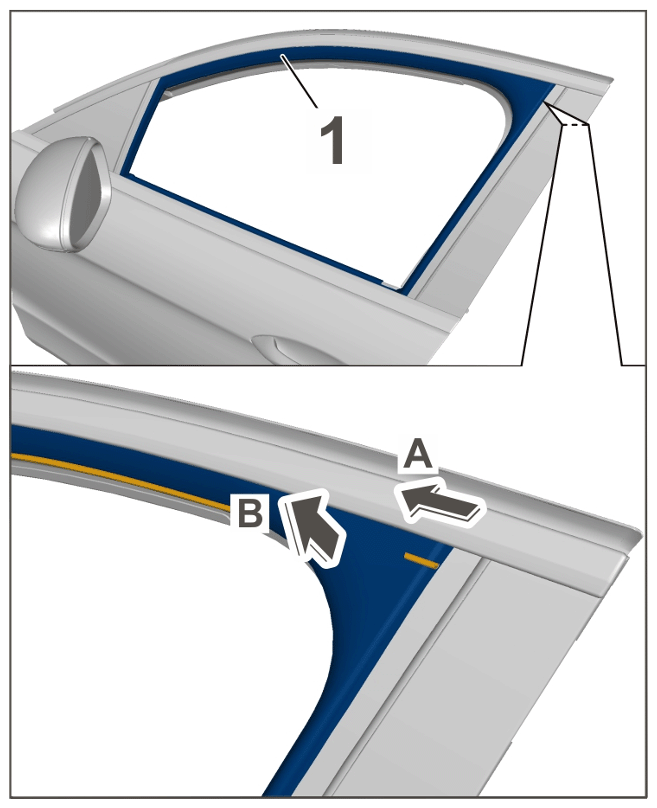

3. Push upper corner of (rear) seal -1-  in direction -arrow A-  and pull it off in direction -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing seal (shown on front door)

4. Pull off rear part of (rear) seal -1-  in direction -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing seal (shown on rear door)

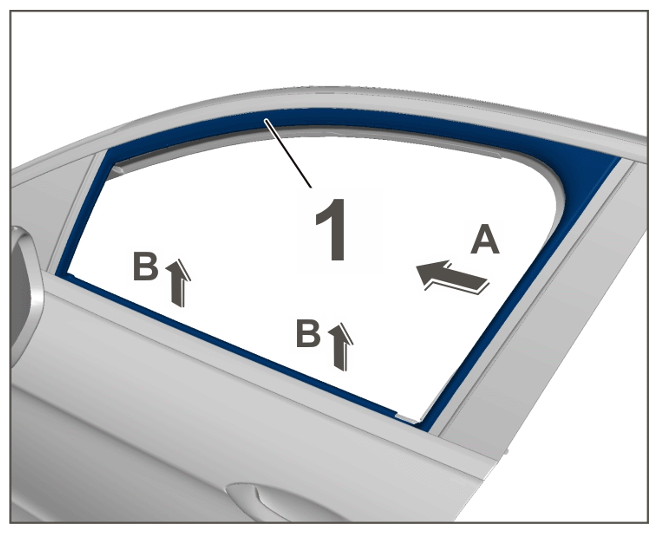

5. Remove (rear) seal -1-  in direction -arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing seal (shown on front door)
