Removing Rear-View Mirror

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

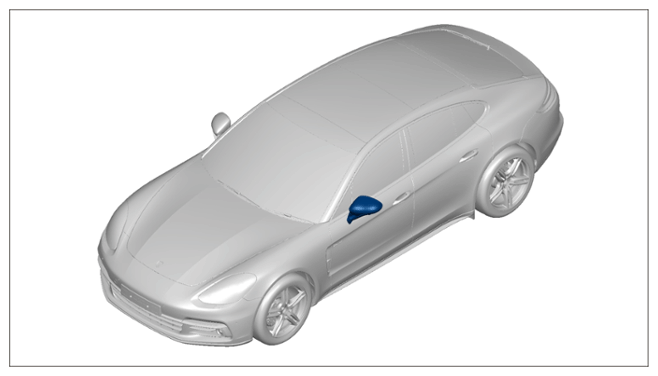

Installation position of rear-view mirror

1. Release the plug connection -a-  and pull it off -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

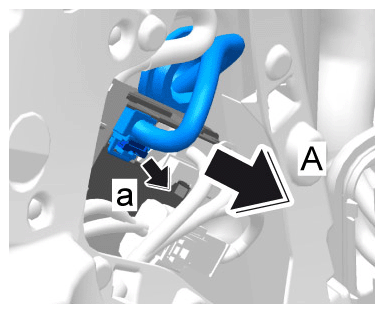

   Releasing plug connection

   Information

   The adhesive pad cannot be pulled off without damaging it and must always be replaced.

2. Pull off adhesive pad -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

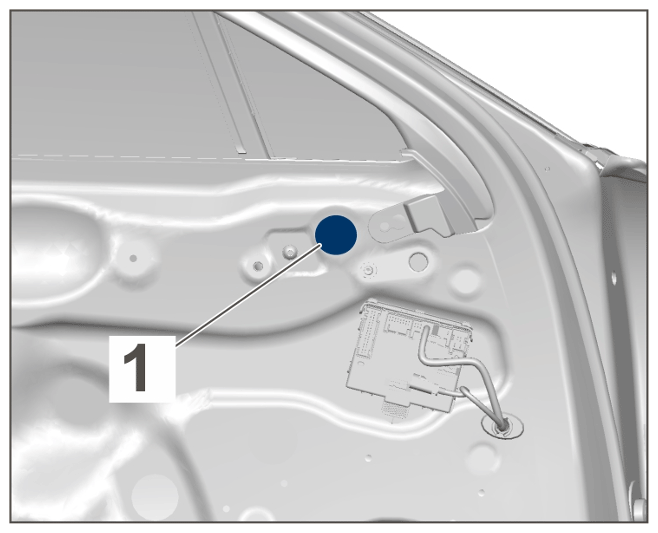

   Adhesive pad

3. Unscrew fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

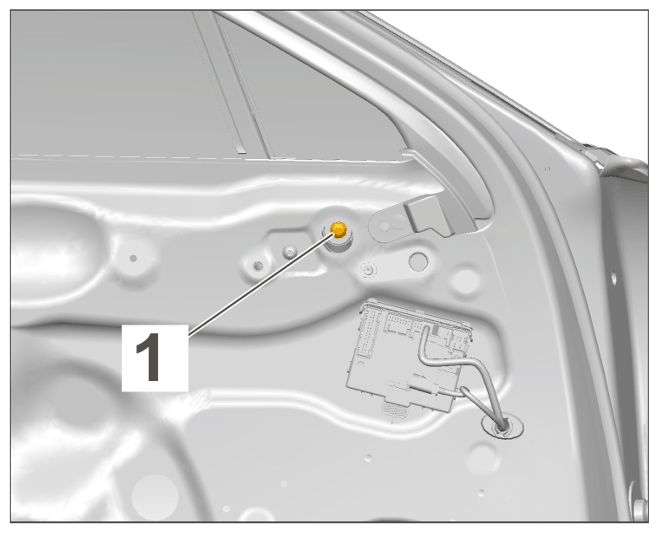

   Fastening screw

4. Remove rear-view mirror.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

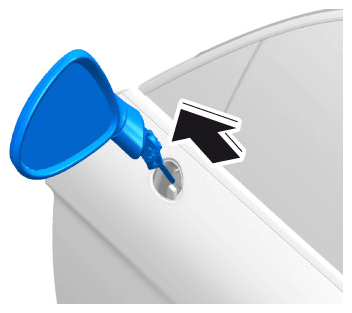

   Removing rear-view mirror

   1. 4.1 Tie cord to the plug connection.
   2. 4.2 Pull up rear-view mirror. -arrow-
   3. 4.3 Pull wire harness out of the door.
   4. 4.4 Detach the cord (remains in the door).
