Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

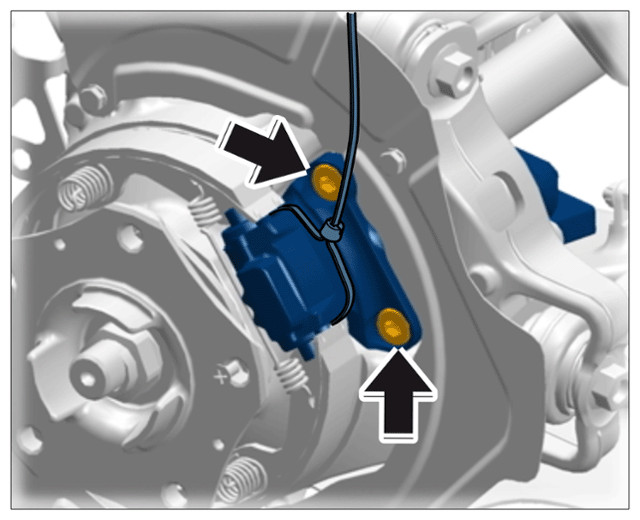

| EPB actuator to wheel bearing housing | Arrow: depending on type - Counters unk screw, M8 x 38 or internal serration screw, M10 x 40/always replace screws following removal! | Initial tightening | 20 Nm (15 ftlb.) | ||
|
Mounting for actuator |
|||||
| EPB actuator to wheel bearing housing | Arrows: depending on type - Counters unk screw, M8 x 38 or internal serration screw, M10 x 40/always replace screws following removal! | Final tightening | + 60° | ||
|
Mounting for actuator |
|||||
