Emergency Release For Electric Parking Brake
WARNING: This page is about a different variant/trim than selected.

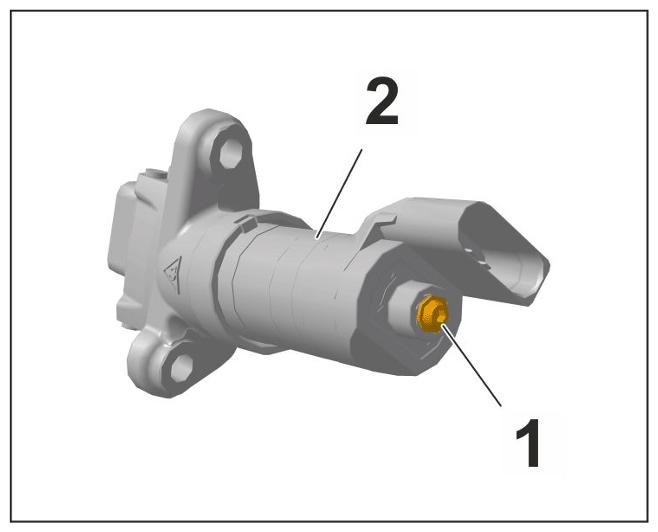

- Unscrew screw -1-
on the actuator -2-
.
Performing emergency release for electric parking brake
Information
The emergency release screw is located behind the screw.
Information
Only use the emergency release if the brake cannot be released electrically (actuator faulty).
- Loosen emergency release screw by about 300 turns until there is a noticeable increase in torque.
