Component Overview

WARNING: This page is about a different variant/trim than selected.

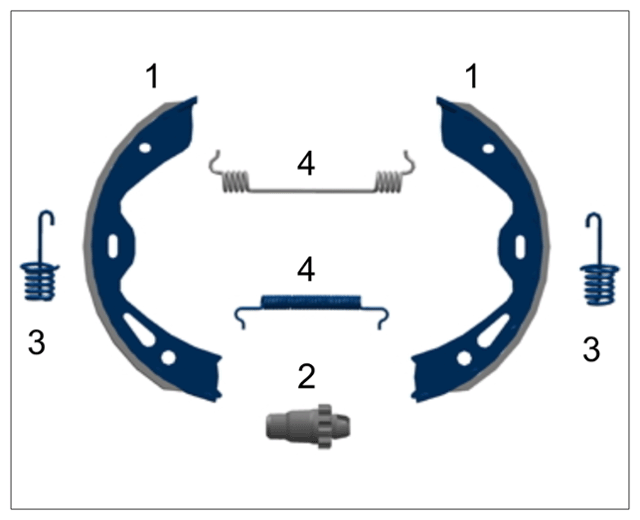

Fig 1: Parking Brake Component Location
G15858411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview for parking brake

1  Brake shoes
2  Adjustment device
3  Compression springs
4  Tension springs
