Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

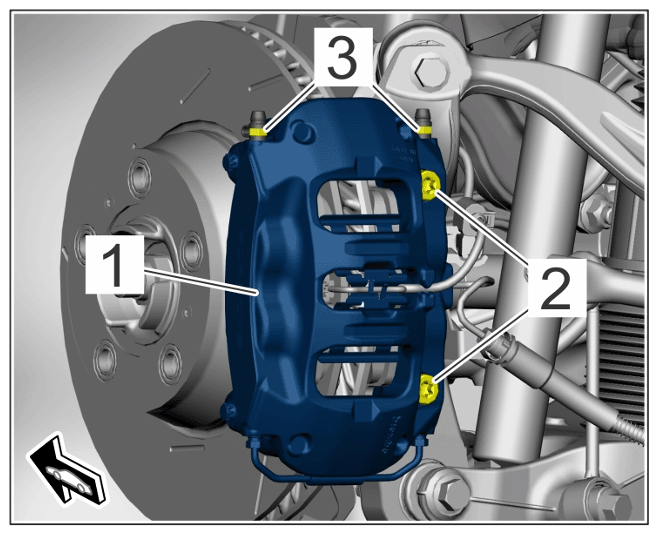

| Brake calliper to wheel bearing housing | Item 2: M12/Always replace screws following removal! | Initial tightening | 20 Nm (15 ftlb.) | ||
|
Rear-axle brake calliper |
|||||
| Brake calliper to wheel bearing housing | Item 2: M12/Always replace screws following removal! | Final tightening torque angle | + 70° | ||
|
Rear-axle brake calliper |
|||||

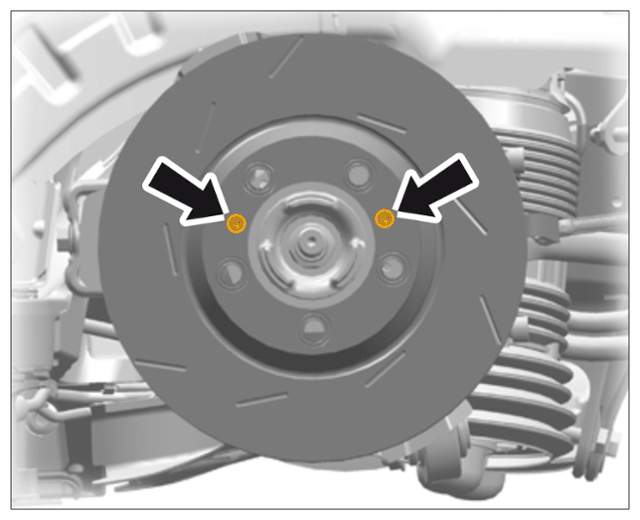

| Brake disc to wheel hub | Arrows: Counters unk screw, M6 x 12/always replace screws following removal! | Tightening torque | 5 Nm (3.5 ftlb.) | ||
|
Brake disc fastening screws |
|||||
