Removing Rear Disc Brake Pads
WARNING: This page is about a different variant/trim than selected.
- Press brake pistons back to their original position using >T10145 - piston reset tool
.
Information
When doing this, make sure not to damage the dust boots on the brake pistons.
- Carefully push a screwdriver between the disc brake pads/brake callipers and lever the disc brake pads out by turning the screwdriver slightly >Removing rear disc brake pad (shown when removed)
.

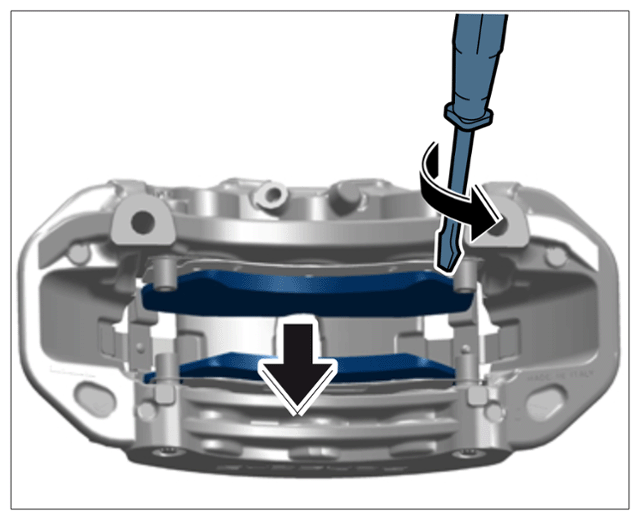

Removing rear disc brake pad (shown when removed)
- Remove pad retaining springs.
