Installing Rear Disc Brake Pads

WARNING: This page is about a different variant/trim than selected.

WARNING: Installation of brake pads with the wrong brake pad quality

Longer braking distance
More wear on brake pads
→ Only use the type-specific brake pads listed in the Porsche Parts Information.

→ Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.

WARNING: Old mounting parts fitted on the brake calliper

Reduced braking effect
Risk of damage to the brake calliper
→ Fit new pad retaining springs

→ Fit new fastening screws

Information

Do not grease the back of the pad backing plates.
Check disc brakes for wear.
> 465302 CHECKING REAR BRAKE DISCS (WEAR ASSESSMENT)
Disc brakes must be clean and free of grease.
The core of the warning contact wire must not be left exposed! Worn insulation will cause a malfunction.
If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.
Use new repair kit.

Install new pad retaining springs.

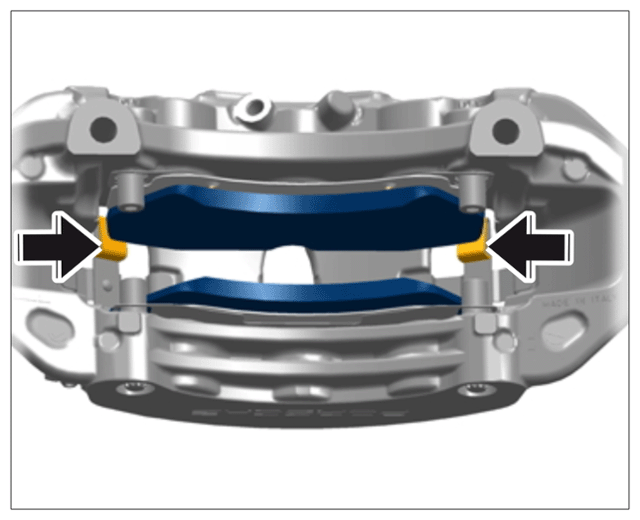

Place disc brake pad on the sealing surfaces of the pad retaining springs -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting disc brake pads

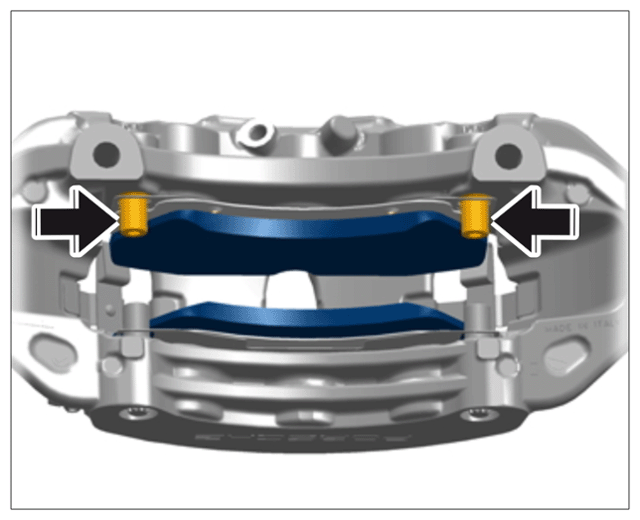

Press disc brake pads into the brake calliper with slight pressure and push them onto the pad retaining pins -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning disc brake pads

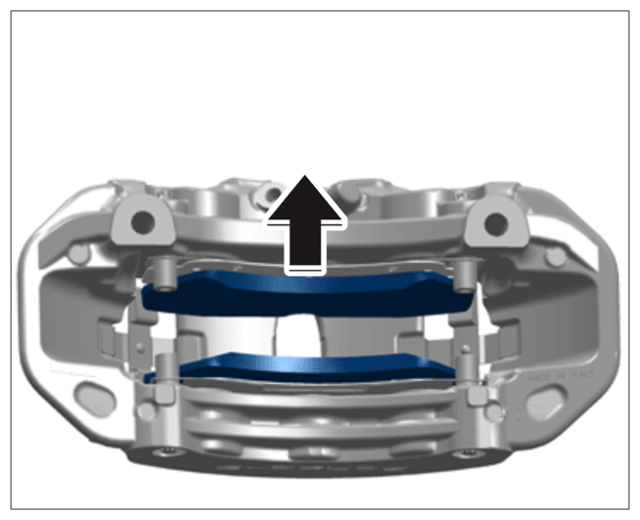

Install disc brake pads -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing disc brake pads
