Vacuum System (V6 BITURBO): Notes

WARNING: This page is about a different variant/trim than selected.

Front view:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

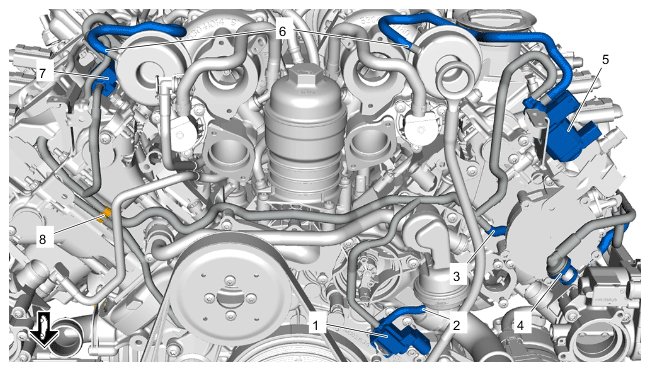

View of line routing for vacuum system - front (V6 biturbo)

1	Control valve
2	Vacuum hose connection
3	Vacuum control line
4	Vacuum pump connection
5	Wastegate control valve, left
6	Vacuum unit connection
7	Control valve connection
8	Retaining clip

View of right side:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

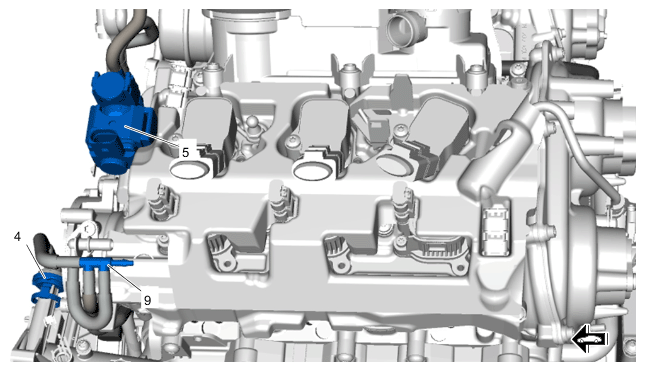

Line routing for vacuum system - right side

View of left side:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

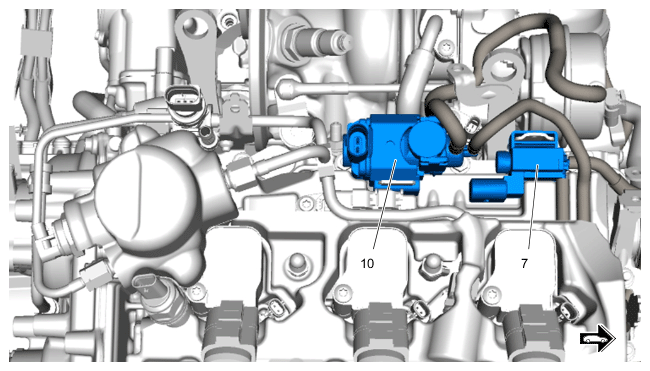

Line routing for vacuum lines - left

7	Control valve
10	Control valve for wastegate

> Tightening torque 9 Nm (6.5 ftlb.)

Fig 1: Electric Plug Connection Holder Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

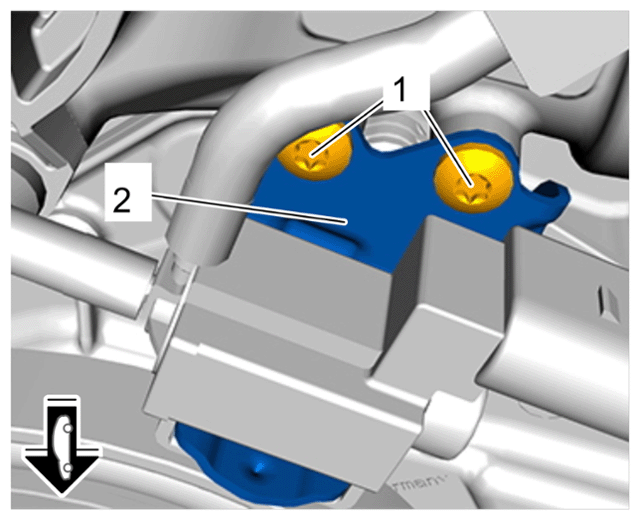

Electric plug connection holder

1	Screws > Tightening torque 9 Nm (6.5 ftlb.)
2	Control valve holder
