Group 28 - Ignition System: Ignition
WARNING: This page is about a different variant/trim than selected.

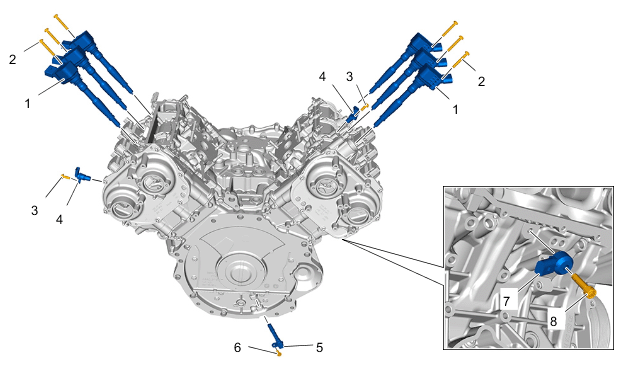

Ignition, V6 Bi-Turbo
| 1 | Ignition coils |
| 2 | Double screw, M6 x 45-M6 x 12 > Tightening torque 9 Nm (6.6 ftlb.) |
| 3 | Screw, M6 x 16 > Tightening torque 9 Nm (6.6 ftlb.) |
| 4 | Camshaft sensor |
| 3 | Nut |
| 5 | Crankshaft pulse sender |
| 6 | Screw M6 x 18 > Tightening torque 8 Nm (5.9 ftlb.) > Initial tightening torque 3 Nm (2.2 ftlb.) > Final tightening torque + 90° |
| 7 | Knock sensor |
| 8 | Screw, M8 x 30 > Tightening torque 30 Nm (22.1 ftlb.) |
| Not shown | Spark plug (old and new) > Tightening torque 23 Nm (17 ftlb.) |
| Not shown | Nut securing earth line to double screw for ignition coil > Tightening torque 9 Nm (6.6 ftlb.) |
