Group 27 - Starter, Power Supply: Generator
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

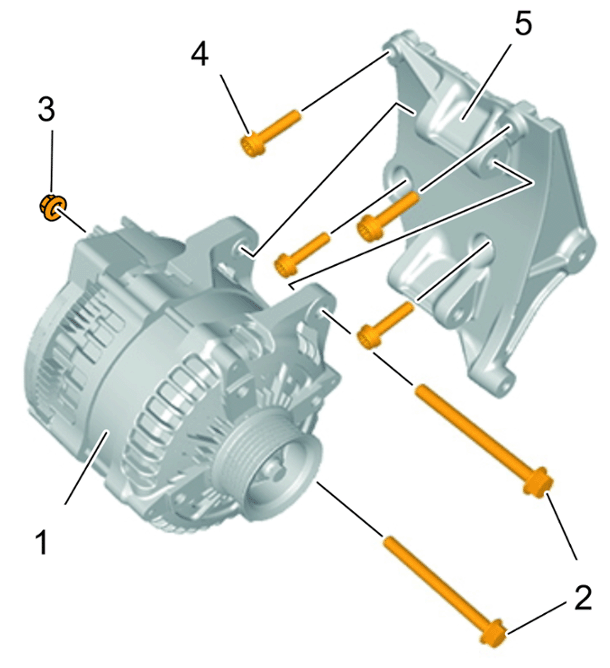

Generator
| 1 |
Generator |
| 2 |
Screw, M8 x 90 > Tightening torque 22 Nm (16 ftlb.) |
| 3 |
M8 nut > Tightening torque 20 Nm (15 ftlb.) |
| 4 |
Screw, M8 x 40 > Initial tightening 8 Nm (6 ftlb.)
> Final tightening torque angle 90 Grad |
| 5 |
Bracket (similar to illustration) |
