Heat Shield On Turbocharger
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

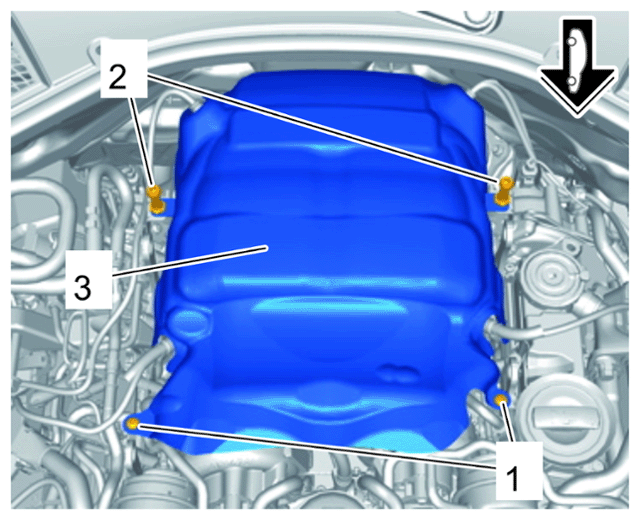

Heat shield on turbocharger
| 1 |
Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.) |
| 2 |
Ball pin > Tightening torque 4.8 Nm (3.5 ftlb.) |
| 3 |
Heat shield on turbocharger |
| not pictured |
Screws, M6 x 12 (ball pin holder) > Tightening torque 9 Nm (6.5 ftlb.) |
