Carbon Canister

WARNING: This page is about a different variant/trim than selected.

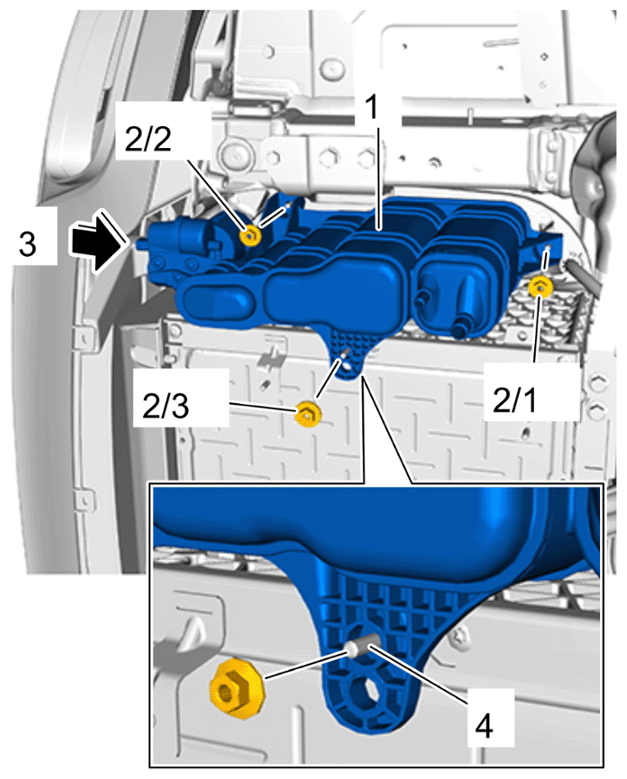

Fig 1: Carbon Canister Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carbon canister

1	Carbon canister
2/1-2/2-2/3	Tightening sequence for M6 hexagon nuts for carbon canister
2/1 and 2/2	> Tightening torque 6 Nm (4.5 ftlb.)
2/3	> Tightening torque 6 Nm (4.5 ftlb.)
3	Connection for leakage diagnosis unit connector
4	Threaded bolt

Not shown: Leakage diagnosis unit to carbon canister: Tapping screw, M5 x 12 > Tightening torque 2 Nm (1.5 ftlb.)

Pressure sensor holder: Screw, M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)

Holder for tank ventilation control valve: Screw, M6 x 20 > 26-51

Tightening torque 9 Nm (6.5 ftlb.)

Damping element holder: Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
