Removing Battery Sensor

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

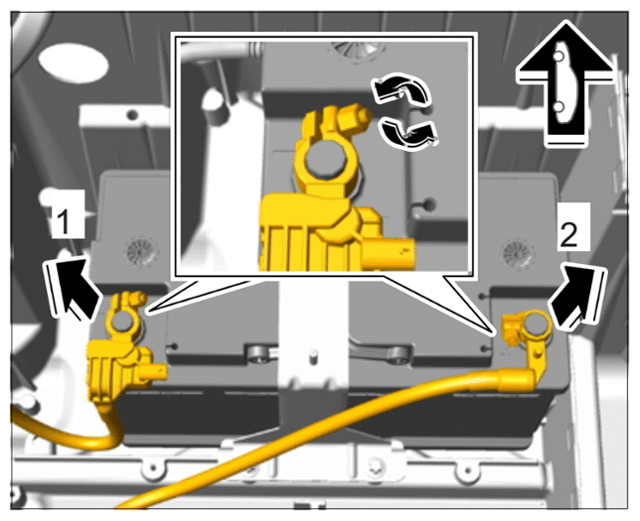

Disconnect the negative cable -1- on the battery.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing terminal clamps

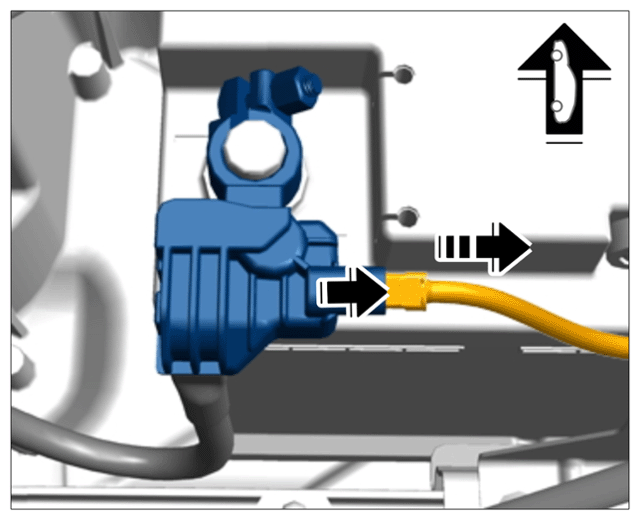

Release and disconnect electric plug connection at the battery sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection

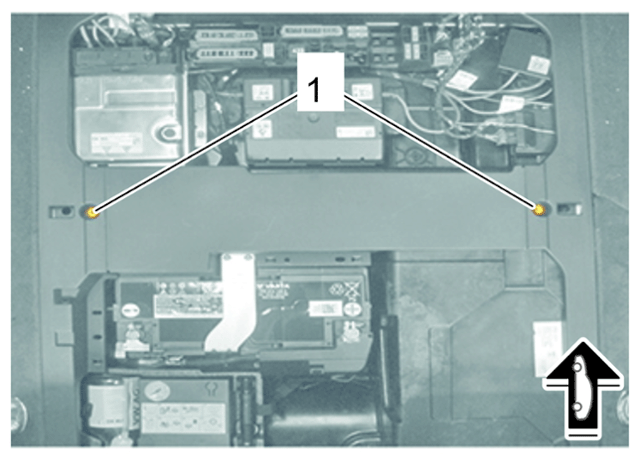

Loosen fastening screws on cover strip -1- and remove cover strip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing cover strip

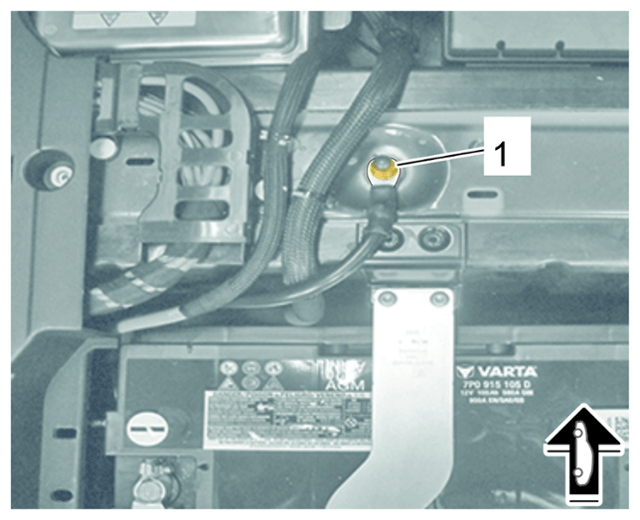

Screw off fastening nut for ground line -1- on the body and remove ground line and battery sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing ground line
