Installing Battery Sensor

1. Connect ground line to body ground point -1-  , align ground line vertically and secure with a fastening nut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

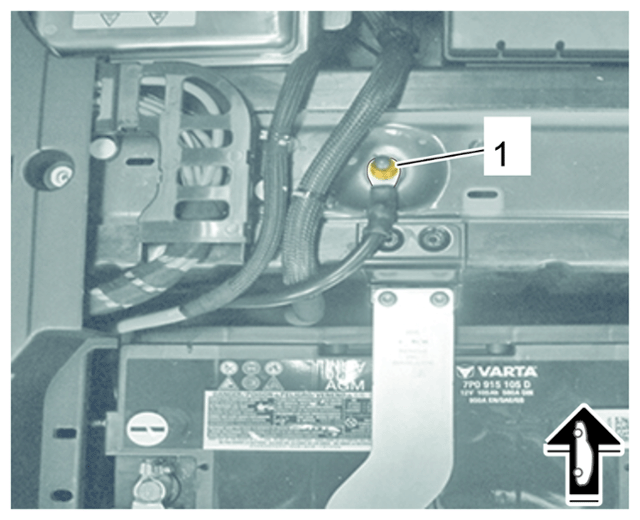

   Securing ground line

2. Fit and secure battery sensor with terminal clamp on the battery.
3. Plug in electric plug connection on battery sensor.
4. Insert cover strip and secure it -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

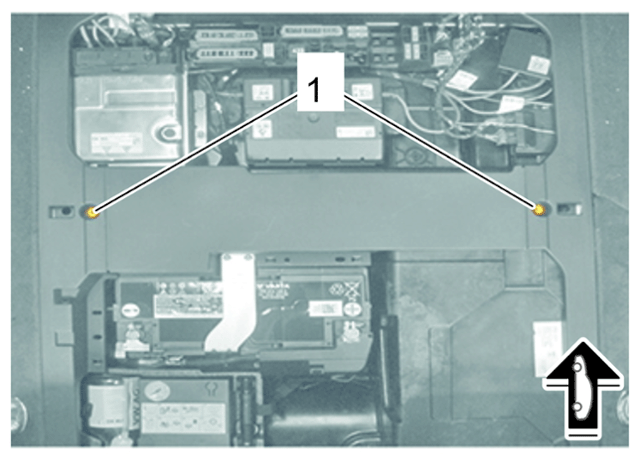

Installing cover strip
