Removing Battery Sensor

1. Switch off ignition and remove remote control (hand-held transmitter).

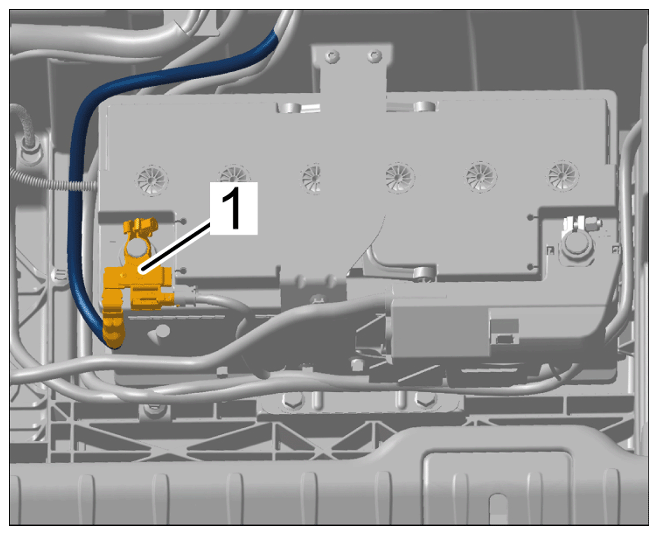

2. Disconnect ground strap with battery sensor -1-  from the battery.

   > 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing ground s

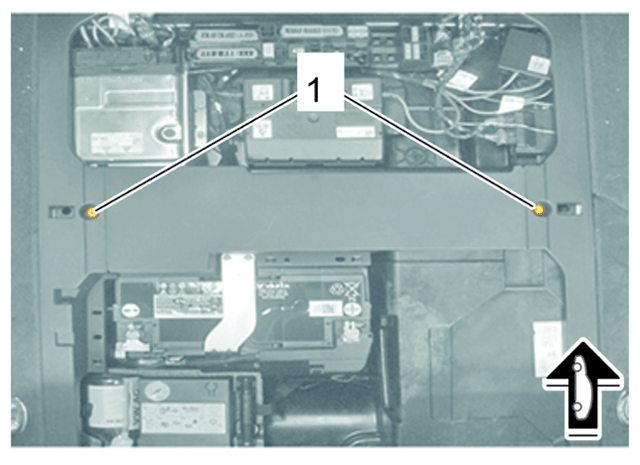

3. Loosen screws on cover strip -1-  and remove cover strip.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cover strip

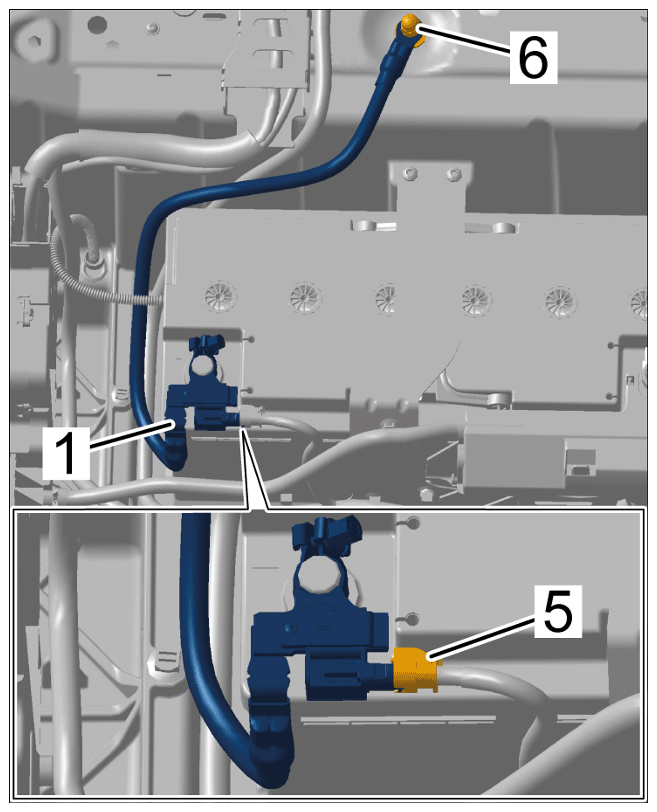

4. Release and disconnect electric plug connection -5-  on the battery sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing and pulling off electric plug connection

5. Unscrew nut -6-  and remove ground strap with battery sensor -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing battery sensor
