Installing Catalytic Converter

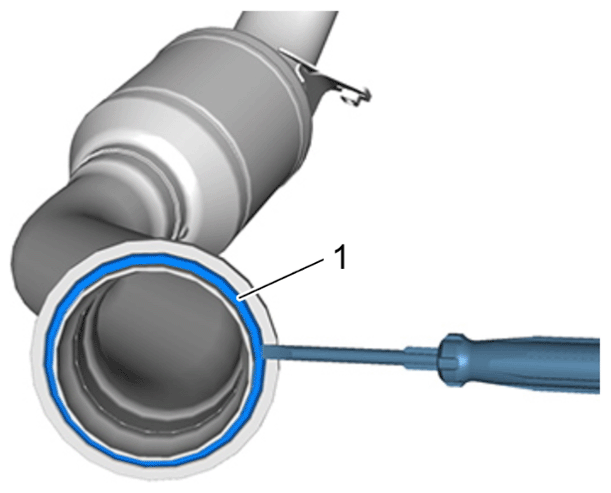

1. 1.1 Carefully lever out the seal using a screwdriver and insert new seal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V-band clamp seal

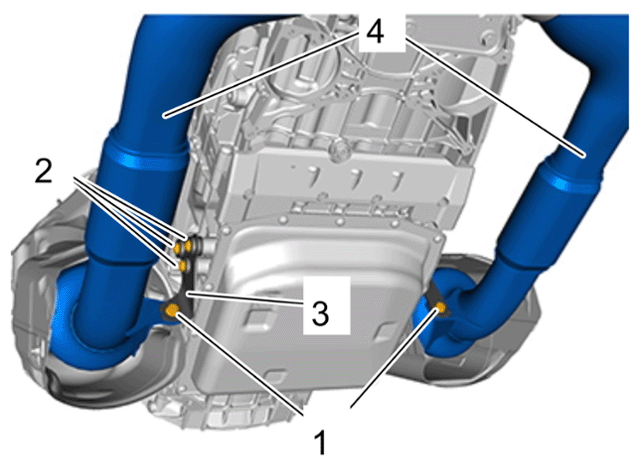

1. 2.1 Carefully insert catalytic converter -4-  at the relevant side.

   Make sure not to damage the heat shields.

2. 2.2 Only for catalytic converter on cylinder bank 2:  Fit catalytic converter holder.
   1. 2.2.1 Fit holder -3-  and screw in and tighten screws -2-  .

      > Tightening torque 23 Nm (17 ftlb.)

3. 2.3 Screw in and tighten screw -1-  .

   > Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converters with holder

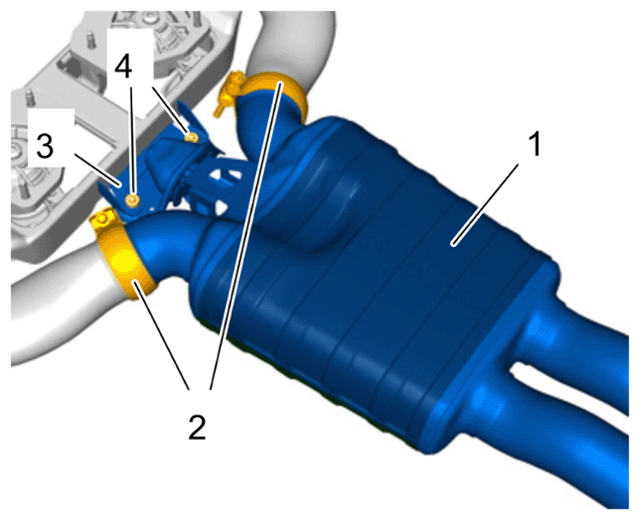

1. 3.1 Position new  V-band clamp -2-  and tighten screw -1-  .

   > Tightening torque 15 Nm (11 ftlb.) +/- 2 Nm (1.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   V-band clamp on catalytic converter

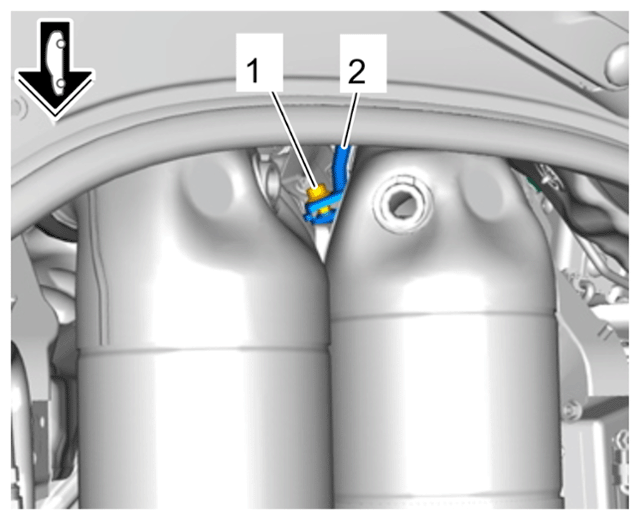

> Tightening torque 35 Nm (26 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball clamps
