Preliminary Work

WARNING: This page is about a different variant/trim than selected.

For heat shields on centre tunnel:
Remove exhaust system.

> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
For heat shields on rear bumper:
Remove rear apron.

> WM, 635519 REMOVING AND INSTALLING REAR APRON (Coupe) , WM, 635519 REMOVING AND INSTALLING REAR APRON (Wagon)
For heat shield on rear silencer:
1. 3.1 Remove exhaust system.
  > 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

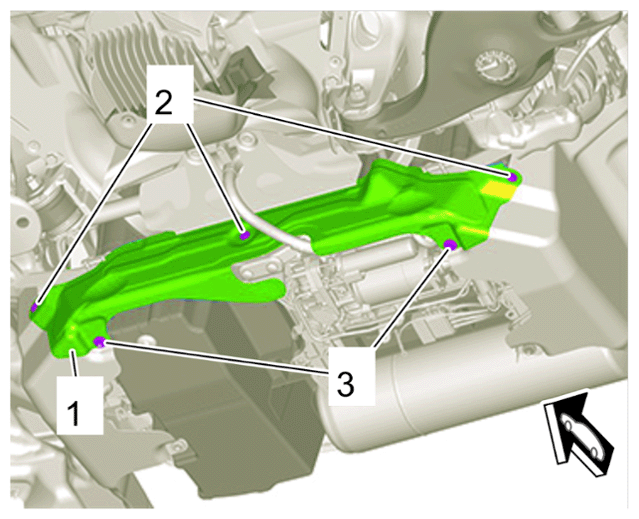

2. 3.2 Remove heat insulation at the centre, luggage compartment pan -1- .
  1. 3.2.1 Unscrew screws -2- and nuts -3- .
  2. 3.2.2 Remove heat insulation at the centre, luggage compartment pan -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat insulation at the centre, luggage compartment pan
