Component Overview
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

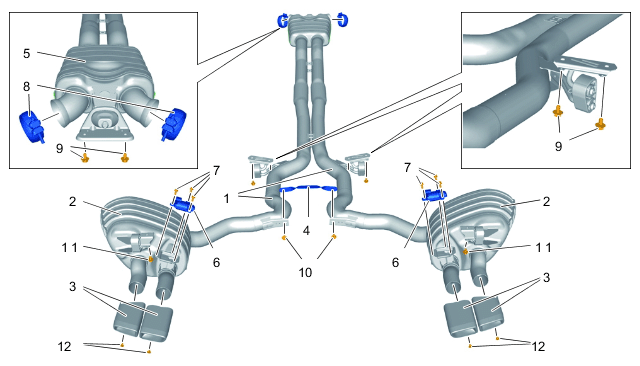

Exhaust system (figure shows V8 Turbo)
| 1 |
Exhaust pipe |
| 2 |
Rear silencer |
| 3 |
Tailpipe |
| 4 |
Strut |
| 5 |
Front silencer |
| 6 |
Actuator for exhaust flap on rear silencer |
| 7 |
Fastening screws, M5 |
| 8 |
Ball clamp |
| 9 |
Fastening screws |
| 10 |
Fastening screws |
| 11 |
Screws, M8 x 22 |
| 12 |
Fastening screws, M6 x 12 |
