Removing All-Wheel Final Drive

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

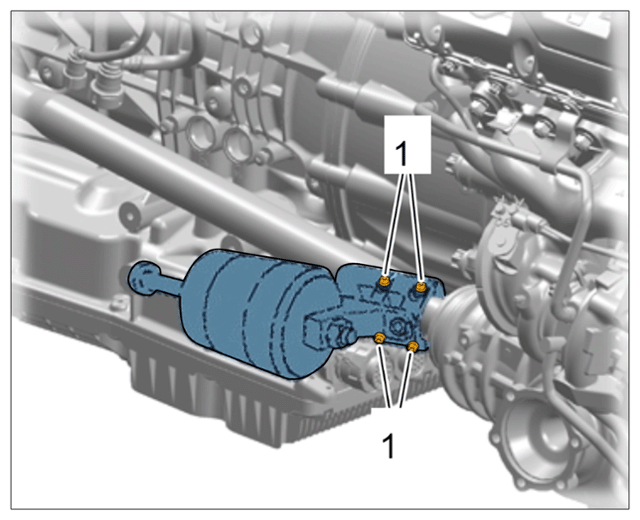

Fit impact puller.
1. 1.1 > 9799 - Impact puller must be fitted at the groove in the connecting shaft using four screws -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting tool (similar to illustration)

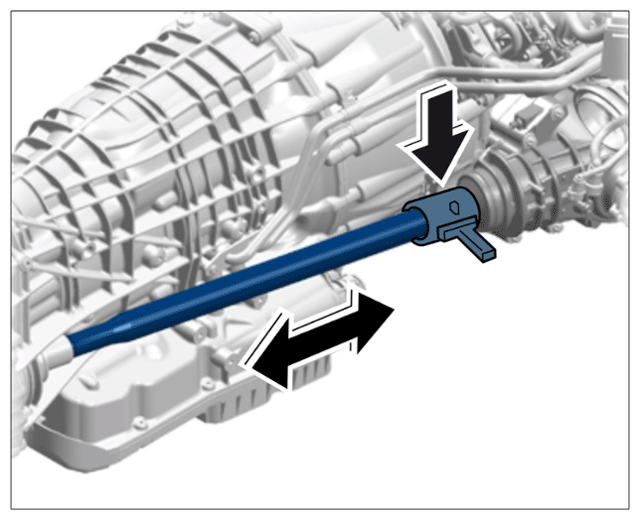

Loosen connecting shaft.
1. 2.1 Use > 9799 - impact puller to remove connecting shaft from all-wheel final drive -arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing and fitting connecting shaft (similar to illustration)

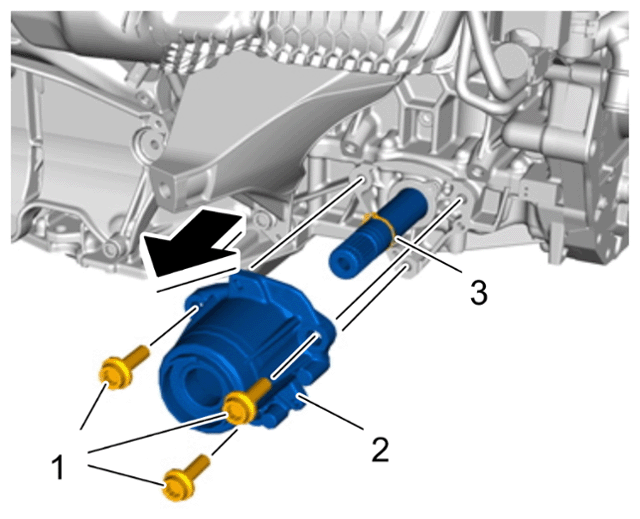

Remove console.
1. 3.1 Unscrew fastening screws -1- and remove console -2- .
2. 3.2 Remove circlip -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Final drive console
Suspend engine using workshop crane and > 3033 - lifting tackle .

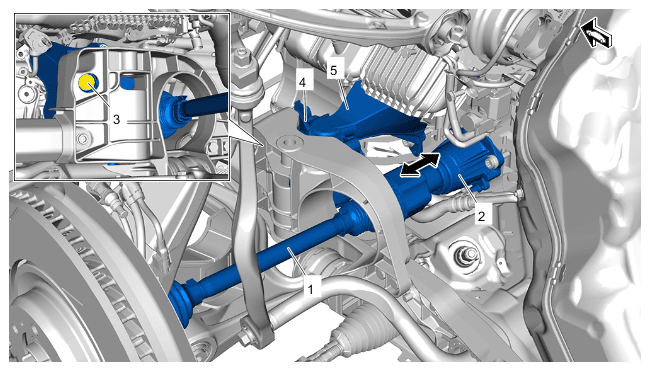

Left side of engine:
1. 5.1 Loosen engine mount -4- from engine carrier -5- .
  1. 5.1.1 Loosen and unscrew screw -3- .
2. 5.2 Press drive shaft -1- off the all-wheel final drive console -2- (-arrow- ) and guide it out carefully.
> 404119 REMOVING AND REINSTALLING FRONT DRIVE SHAFT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft and left engine mount (V8 biturbo engine)

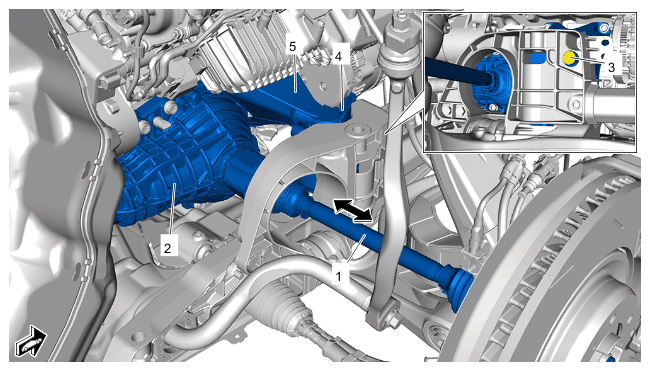

Right side of engine:
1. 6.1 Loosen engine mount -4- from engine carrier -5- .
  1. 6.1.1 Loosen and unscrew screw -3- .
2. 6.2 Lift the engine up slightly.
3. 6.3 Press drive shaft -1- off the all-wheel final drive -2- and guide it out carefully.
> 404119 REMOVING AND REINSTALLING FRONT DRIVE SHAFT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft and right engine mount (V8 biturbo engine shown)

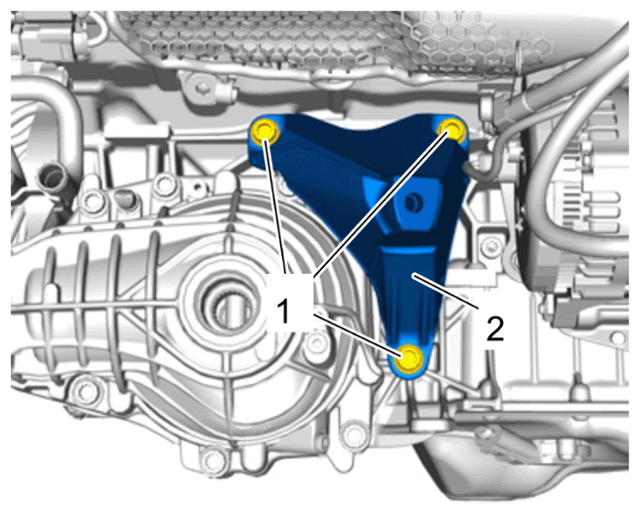

Remove right engine carrier.
1. 7.1 Unscrew fastening screws -1- and remove engine carrier -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right engine carrier

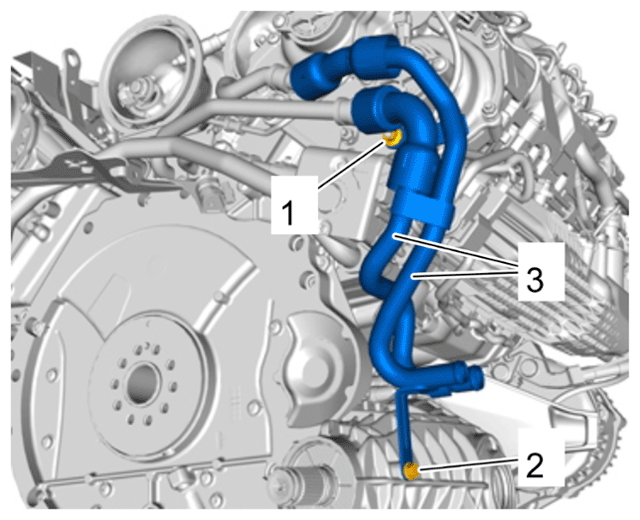

Disconnect coolant lines -3- .
1. 8.1 Unscrew nut -1- and screw -2- and swivel coolant lines -3- aside.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting coolant lines

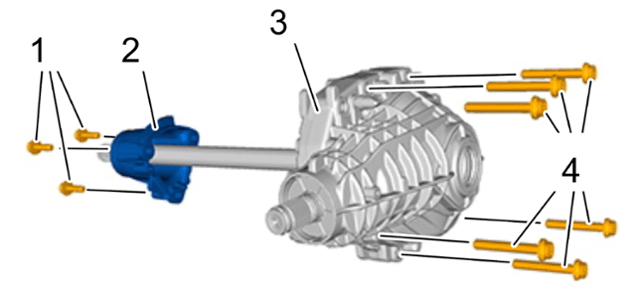

Remove all-wheel final drive.

9.1 Unscrew screws -4- and remove all-wheel final drive -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle final drive
