Removing Control Unit For Rear-Differential Lock

WARNING: This page is about a different variant/trim than selected.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

Switch off ignition and remove remote control (hand-held transmitter).

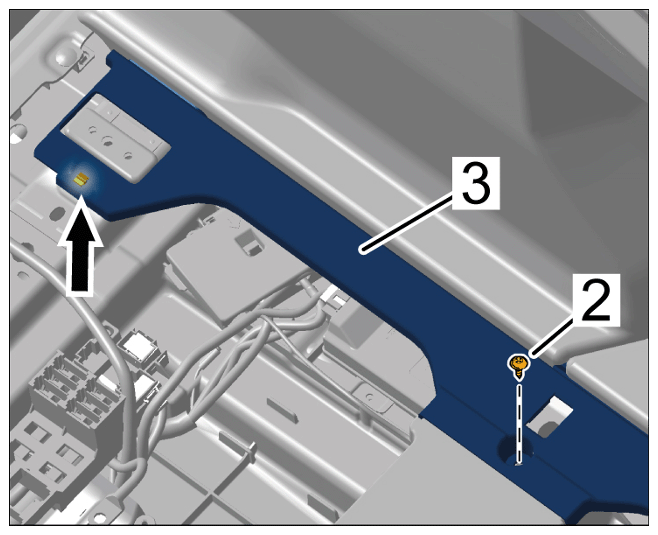

Unscrew screw -2- and unclip right cover -3- at the front -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping cover

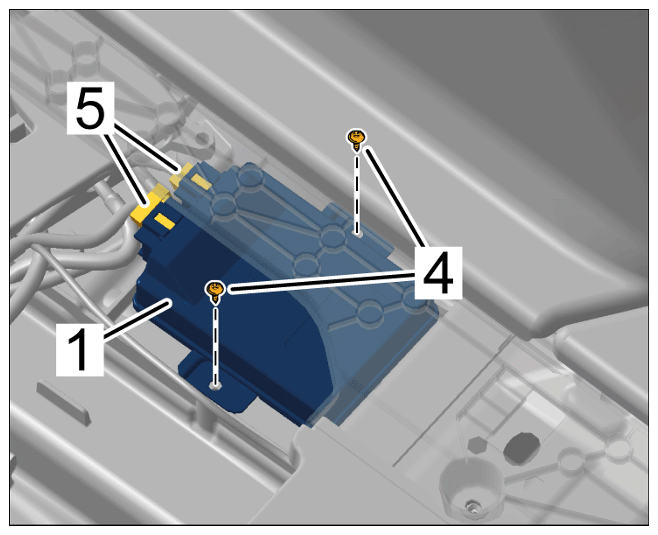

Remove control unit for rear-differential lock -1- .
1. 3.1 Lift up cover and unscrew screws -4- .
2. 3.2 Release and unplug electric plug connections -5- .
3. 3.3 Remove control unit for rear-differential lock -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing control unit for rear-differential lock
