Subsequent Work

WARNING: This page is about a different variant/trim than selected.

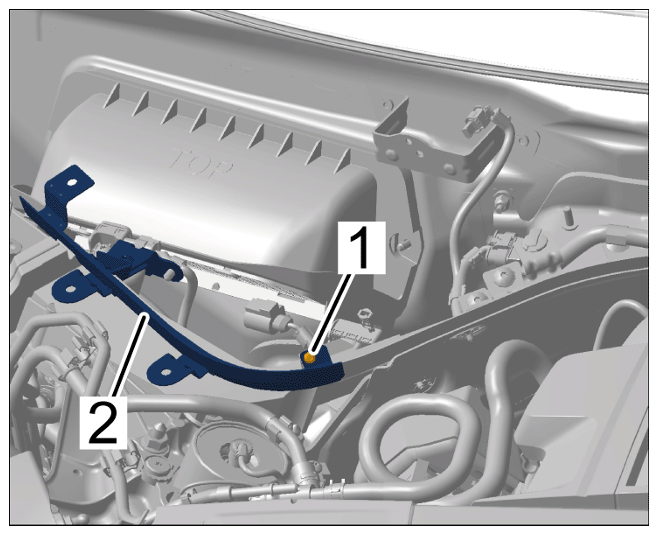

Position upper part of plenum panel at the right -2- and screw in and tighten screw -1- > Tightening torque 4 Nm (3 ftlb.) +/- 15 %

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing upper part of plenum panel at the right
Install the cowl panel cover.
> WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER
Install plenum panel cover.
> WM, 852219 REMOVING AND INSTALLING PLENUM PANEL COVER COUPE or WM, 852219 REMOVING AND INSTALLING PLENUM PANEL COVER WAGON
