Removing Radiator: Notes

Information

• Some repairs are shown only on one side of the vehicle.
• Some steps also have to be performed on the opposite side of the vehicle as well.

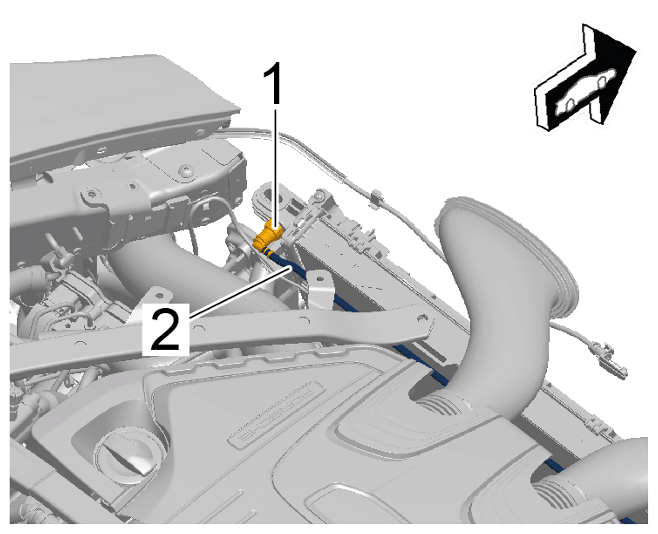

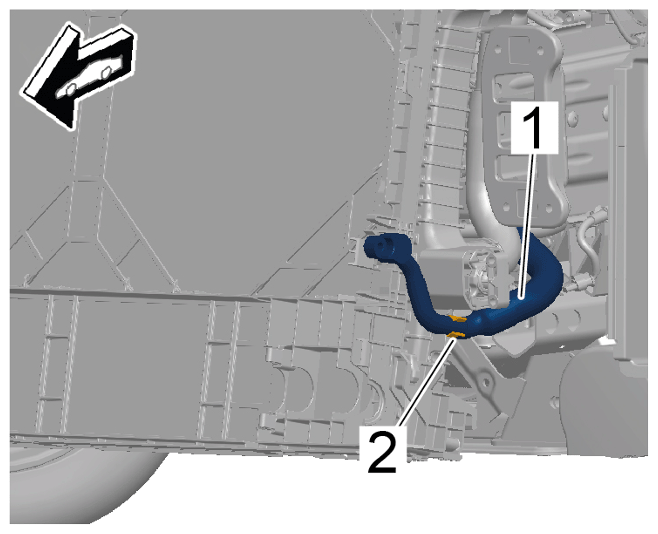

1. Open coupling -1-  and pull off coolant line -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant line

2. For the V6 Monoturbo:

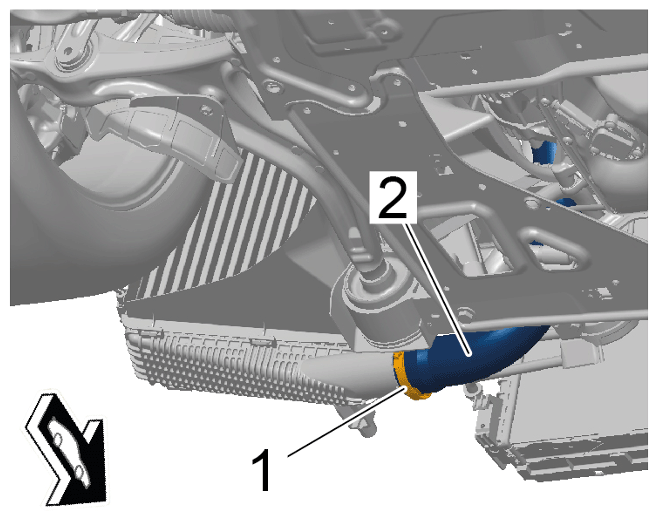

   Loosen clamp -1-  , pull pressure hose -2-  off the left and right charge-air coolers and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure hose on charge-air cooler

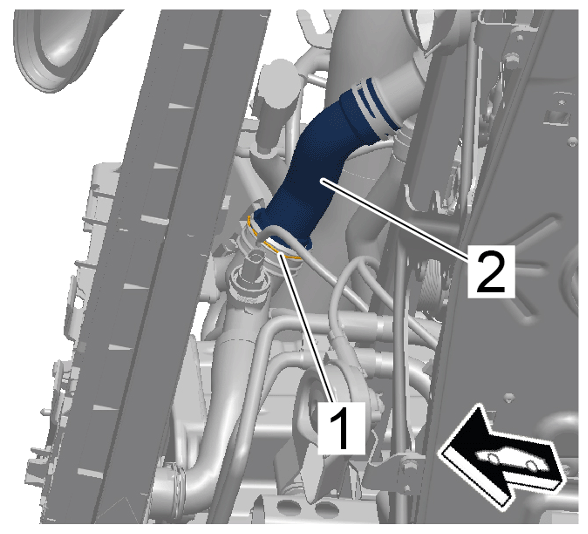

3. Lift up retaining clip -1-  using > T10118 - assembly tool  and disconnect coolant hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant hose

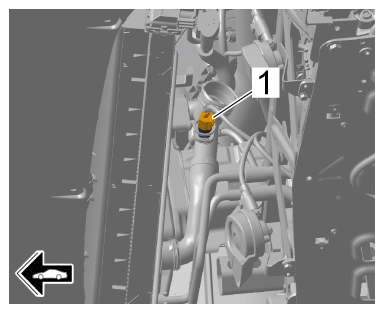

4. Release and disconnect electric plug connection -1-  on the coolant temperature sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for coolant temperature sensor

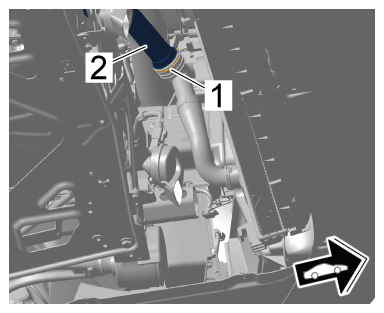

5. Lift up retaining clip -1-  using > T10118 - assembly tool  and disconnect coolant hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant hose

6. Unclip refrigerant line -1-  from holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Refrigerant line

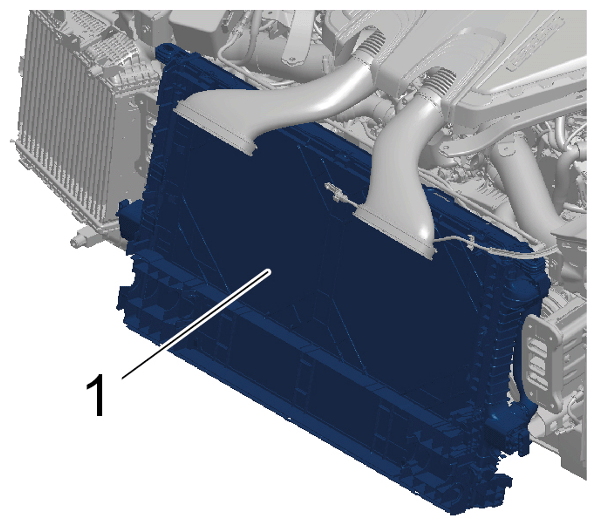

7. Pull the radiator -1-  forward out of the vehicle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cooler

8. When replacing components:

   Remove coolant distributor tubes.

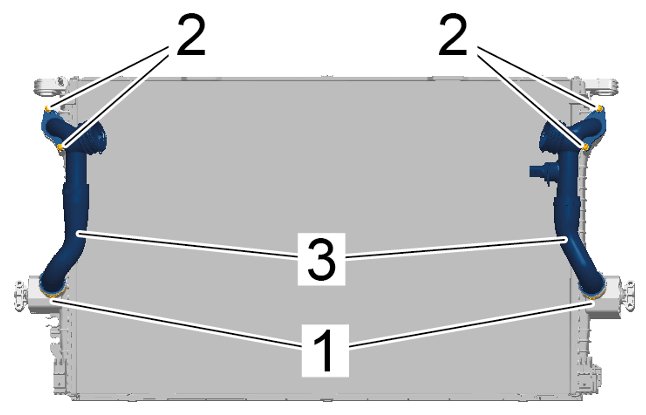

   1. 8.1 Lift up retaining clips -1-  using > T10118 - assembly tool  .
   2. 8.2 Unscrew screws -2-  and remove coolant distributor tubes -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Coolant distributor tubes

9. When replacing components:

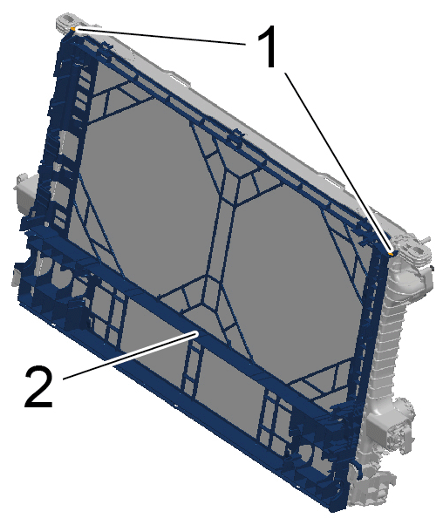

   Unscrew screws -1-  and pull bracket -2-  up off the radiator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket
