Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove lock carrier.
> WM, 503819 REMOVING AND INSTALLING LOCK CARRIER
Remove front air guide.
> 192419 REMOVING AND INSTALLING FRONT AIR GUIDE
Remove cooling fan housing (radiator frame).
> 192019 REMOVING AND INSTALLING COOLING FAN HOUSING (RADIATOR FRAME)

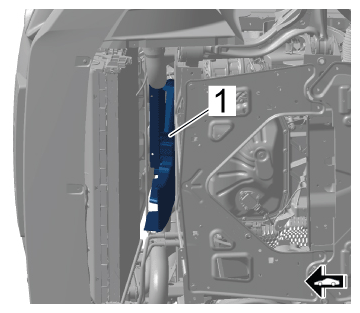

Remove air guide -1- in a downward direction.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide
Remove condenser.
> 875019 REMOVING AND INSTALLING CONDENSER
Remove ATF cooler.
> 386019 REMOVING AND INSTALLING ATF COOLER
Drain coolant.
> 193817 DRAINING AND FILLING COOLANT
For Hybrid vehicles:
Drain coolant in low-temperature cooling system.

> WM, 193817 DRAINING AND FILLING COOLANT
For V6 monoturbo engines:
Remove charge-air cooler.

> WM, 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER (V6 MONOTURBO)
