Removing Cooling Fan Housing (Radiator Frame)

WARNING: This page is about a different variant/trim than selected.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

    → Switch off electric power to drive motor.

    → Make sure it does not switch on again.

    → Check that there is no electric charge.

  1. Disconnect electric line for the cover latch at the cooling fan housing.
  2. Release and disconnect electric plug connection for electric fan -1-  .

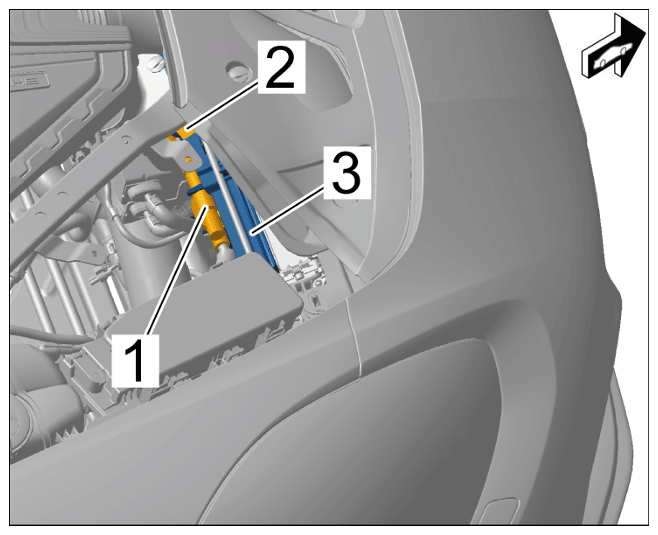

    G15821723Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Unclip electric plug connection -2-  from cooling fan housing (radiator frame) -3-  .
    G15821724Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  4. Remove expansion rivets -1-  from air guide on cooling fan housing (radiator frame) -2-  .

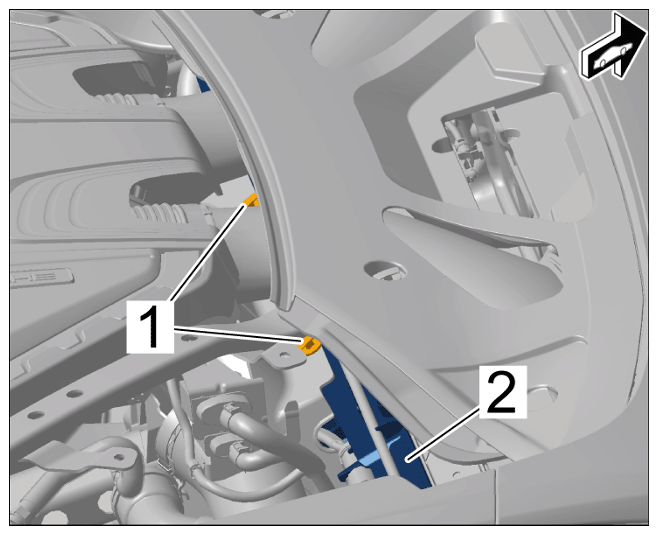

    G15821725Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expanding rivets

  5. Disengage lower air guide -1-  from cooling fan housing (radiator frame) -Arrow-  and move it towards the engine.

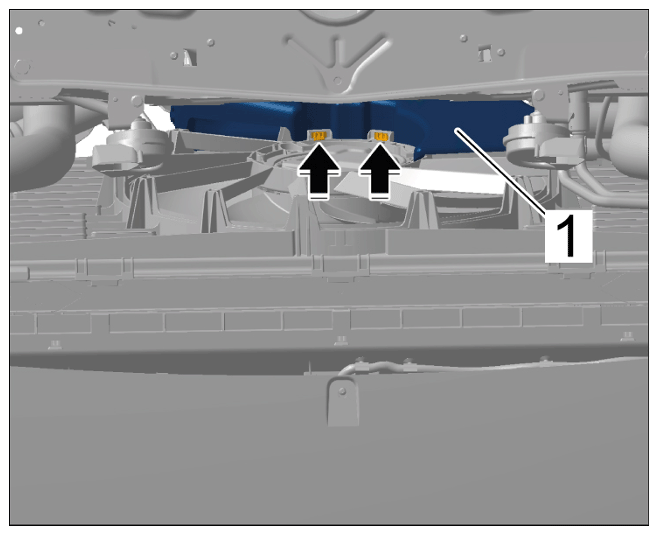

    G15821726Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air guide

  6. Unscrew screws -1-  on cooling fan housing (radiator frame) -2-  and release the tab at the left and right -Arrow-  .

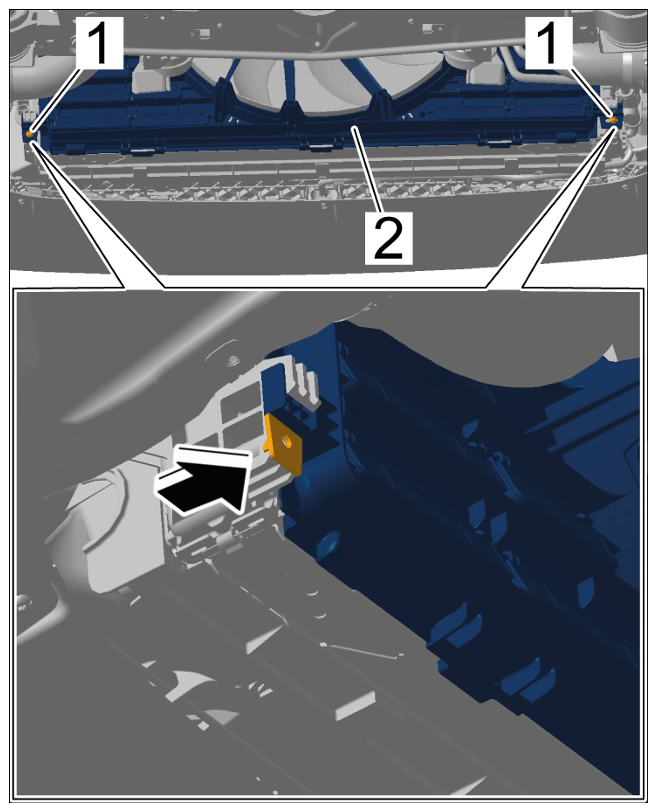

    G15821727Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cooling fan housing (radiator frame)

  7. Guide out cooling fan housing (radiator frame) -2-  by moving it downwards.
    G15821728Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cooling fan housing (radiator frame)
