Removing And Installing Temperature Sensor For Fan

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electric plug connection -2-  . Unscrew screw -1-  and remove temperature sensor.

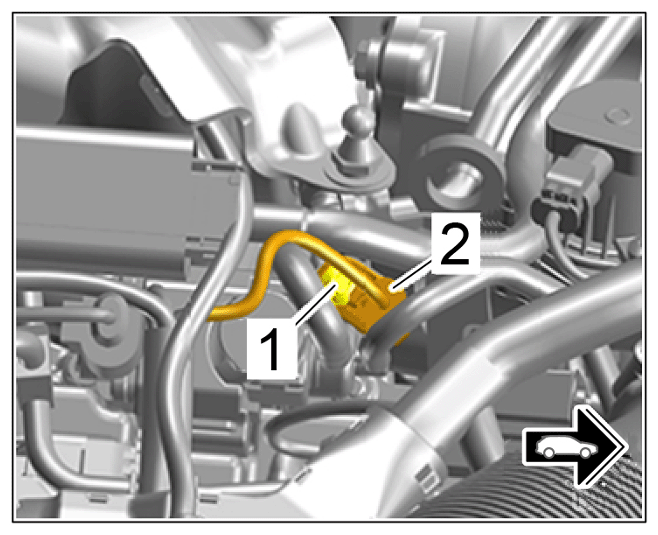

G15821722Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Temperature sensor for fan

  1. 1.1 Installation is performed in reverse order to removal.

    > Tightening torque 9 Nm (6.5 ftlb.)
