Removing Pressure Accumulator

WARNING: This page is about a different variant/trim than selected.
  1. Remove pressure accumulator -10-  .

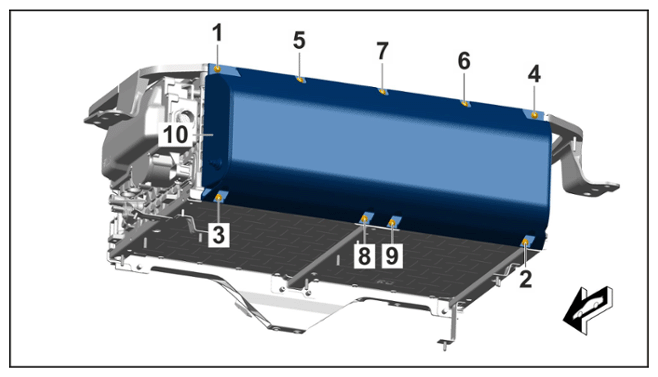

    Fig 1: Pressure Accumulator Mounting Screws Loosening Sequence
    G15860959Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for pressure accumulator

    1. 1.1 Unscrew fastening screws -1 to 9-  .
