Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Rear upper control arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! | Initial tightening | 70 Nm (52 ftlb.) | ||
| Rear upper control arm to wheel bearing housing | Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! | Final tightening torque angle | + 90° | ||

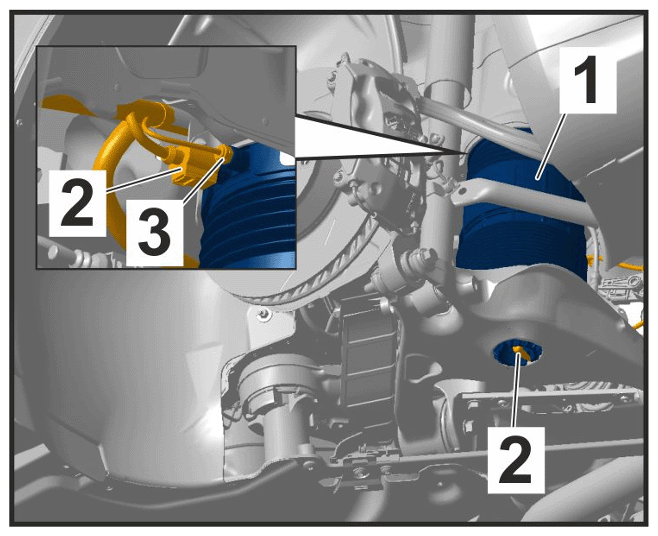

| Air line to rear air spring | Item 3: Union nut | Tightening torque | 2 Nm (1.5 ftlb.) | ||
|
Plug connections on air spring bellows |
|||||
