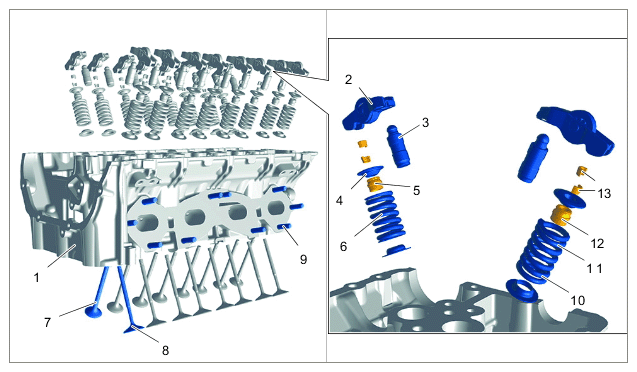

Valve drive - V8 Turbo
| 1 |
Cylinder head |
| 2 |
Rocker arm |
| 3 |
Tappet |
| 4 |
Valve-spring plate, top |
| 5 |
Valve-stem seal |
| 6 |
Valve spring, intake |
| 7 |
Intake valve |
| 8 |
Outlet valve |
| 9 |
Stud |
| 10 |
Valve-spring plate, bottom |
| 11 |
Valve spring, outlet |
| 12 |
Valve-stem seal |
| 13 |
Valve collet |
