Tightening Sequence For Camshaft Bearing Cover

WARNING: This page is about a different variant/trim than selected.

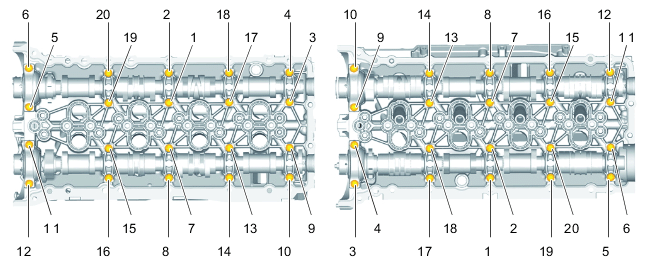

Fig 1: Camshaft Bearing Cover Screws Tightening Sequence - V8 Turbo
G15824880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for camshaft bearing cover - V8 Turbo

1-20  Tightening sequence for camshaft bearing cover
