Belt Drive

WARNING: This page is about a different variant/trim than selected.

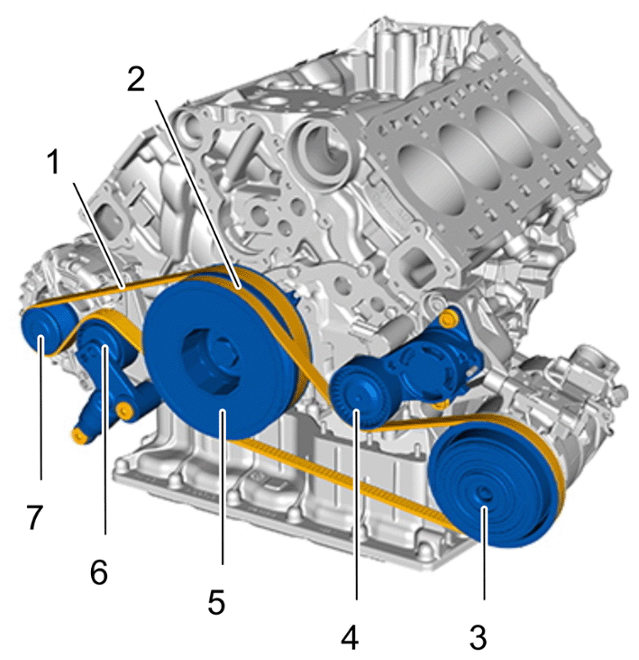

Fig 1: Belt Drive Components Location - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of belt drive - V8 Turbo

1	Belt for generator
2	Belt for air-conditioning compressor
3	Air-conditioning compressor
4	Belt tensioner (air-conditioning compressor)
5	Vibration damper
6	Belt tensioner (generator)
7	Generator

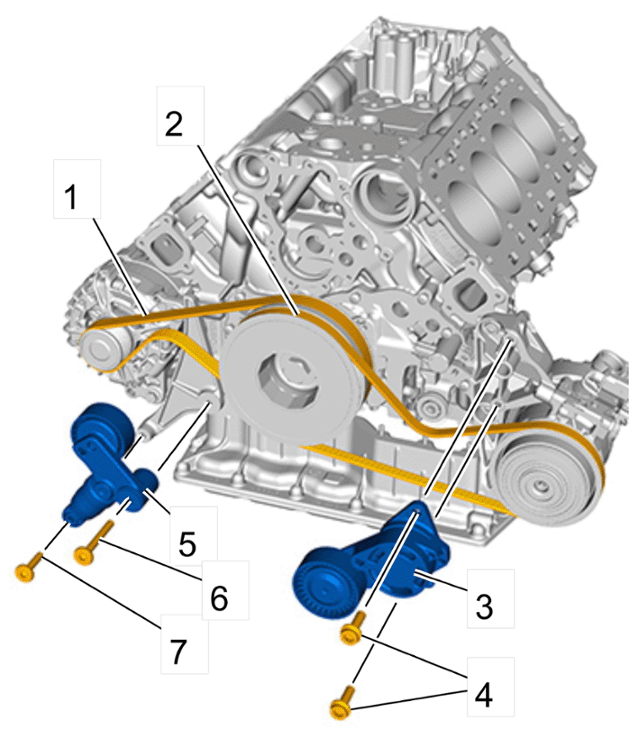

Fig 2: Belt Drive Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt drive - V8 Turbo

1	Belt for generator
2	Belt for air-conditioning compressor
3	Belt tensioner (air-conditioning compressor)
4	Screw, M8 x 25 > Tightening torque 23 Nm (17 ftlb.)
5	Belt tensioner (generator)
6	Screw, M8 x 60, top > Tightening torque 32 Nm (24 ftlb.)
7	Screw, M8 x 33, bottom > Tightening torque 32 Nm (24 ftlb.)
not shown	Screw, M8 x 40 > Tightening torque 23 Nm (17 ftlb.)

Not shown: Screw for vibration damper > Initial tightening, Step 1 50 Nm (37 ftlb.) > Initial tightening, Step 2 100 Nm (74 ftlb.) > Final tightening 180 Grad

Not shown: Deflection roller > Tightening torque 23 Nm (17 ftlb.)
