Positive Crankcase Ventilation
WARNING: This page is about a different variant/trim than selected.

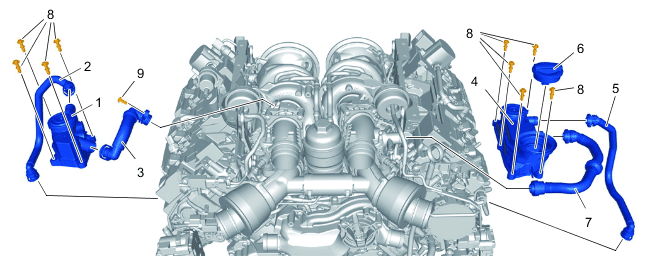

Positive crankcase ventilation - V8 Turbo
| 1 | Oil separator for cylinders 1-4 |
| 2 | Vent line - partial load |
| 3 | Vent line - full load |
| 4 | Oil separator for cylinders 5-8 |
| 5 | Vent line - partial load |
| 6 | Oil cap |
| 7 | Vent line - full load/only in conjunction with left intake manifold (not-to-open) |
| 8 | Screws > Tightening torque 9 Nm (6.5 ftlb.) |
| 9 | Special screw 9A710344800 |
Information
- Only unscrew the screw if the positive crankcase ventilation hose needs to be replaced.
- Always ensure that a new screw with the part number 9A710344800 is used.
> Tightening torque 9 Nm (6.5 ftlb.)
