Engine Mount

WARNING: This page is about a different variant/trim than selected.

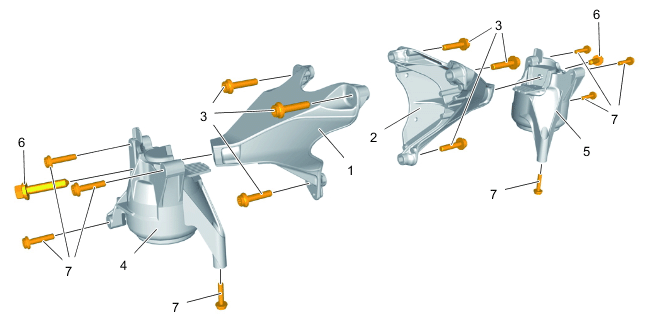

Fig 1: Engine Mount Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine mount - V8 Turbo

1	Right engine carrier
2	Left engine carrier
3	Screws, M10 x 45/replace > Initial tightening 50 Nm (37 ftlb.) > Final tightening + 90°
4	Right engine mount
5	Left engine mount
6	Screw, M12 x 1.5 x 60 > Initial tightening 70 Nm (52 ftlb.) > Final tightening + 90°
7	Screw, M8 x 35 > Tightening torque 30 Nm (22 ftlb.)
